USAI Lighting

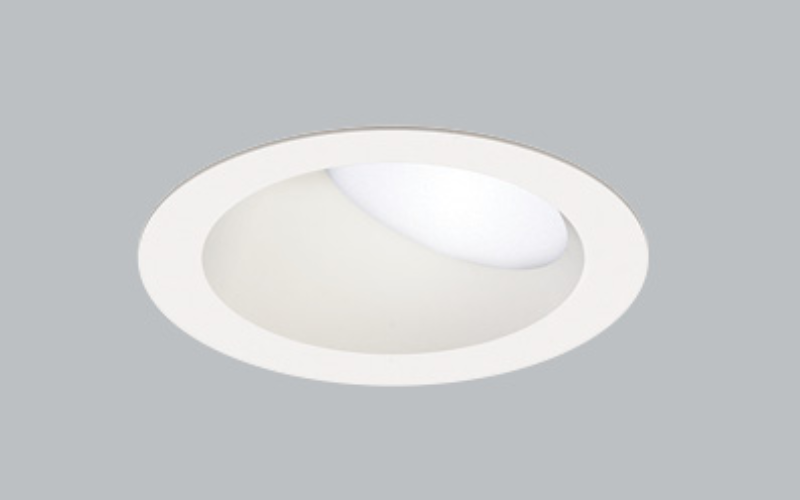

P3RWF. BeveLED Mini Primary T24 3” Round Wall Wash.
Add to project
RESOURCES
DESCRIPTION
BeveLED Mini Primary provides consistent, high quality white light in an economical architectural solution with our iconic BeveLED trim
- CEC T24 JA8 qualifi ed
- 2700K, 3000K or 3500K color temperature options in 90+ CRI
- Downlight, adjustable and wallwash confi gurations
- Dry/damp/wet location rated for bathrooms and showers
- Dimmable with forward and reverse phase dimmers
- High LED performance with budget-conscious features
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 4"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K
- CRI90
- Watt(Approx)9 W15 W
- Lumens(Approx)900 Lm1325 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSAIBEWT24*BAA
- EnvironmentShowerWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingIC Air Tight
- Housing Depth4 5/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeP3RWF-T24
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
