USAI Lighting

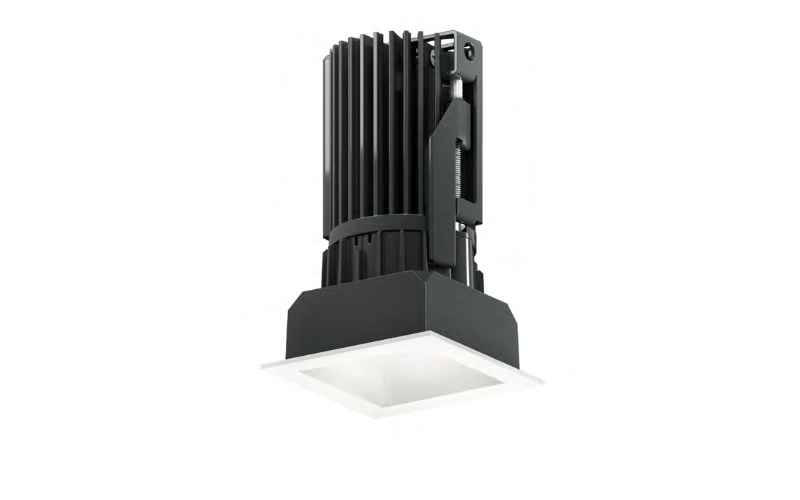

S2SD-SO. the LittleTwos Pinhole Standard Output 2” Square Downlight.
 Add to project
USAI Lighting. S2SD-SO. the LittleTwos Pinhole Standard Output 2” Square Downlight.
USAI Lighting. S2SD-SO. the LittleTwos Pinhole Standard Output 2” Square Downlight.
RESOURCES
DESCRIPTION
Available as a full family of downlight, adjustable and wall wash, USAI’s high performance 2” aperture pinhole product line can light spaces with ceilings from
8’ to 20’ in height while remaining fully serviceable AND installable from below the ceiling plane.
  • High performance pinhole with install-from-below capability
  • Classic White LED color options in standard 80+ and high 90+ CRI
  • Trimmed, trimless and millwork styles are compatible with sheetrock, ACT, wood/millwork, and many other ceiling materials
  • Industry leading illumination and craftsmanship
  • New construction and remote driver housing options for easy installation in any site condition
  • Multi fixture remote driver arrangements for ultimate field flexibility and installation convenience
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 1/16"2 5/8"
    L: 3 1/16"2 5/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    7 W11 W
  • Lumens(Approx)
    685 Lm964 Lm
  • Optics
    DirectMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingLutron EcoSystem HeldoLED ECO DALIeldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO DMX
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWBAA
  • Environment
    Wet
  • Mounting Type
    Ceiling RecessedMillwork RecessedDrywallTrimless DrywallT-Grid CeilingWood
  • Housing
    New ConstructionICChicago PlenumRetrofit
  • Housing Depth
    4 7/8 ''7 3/8 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
