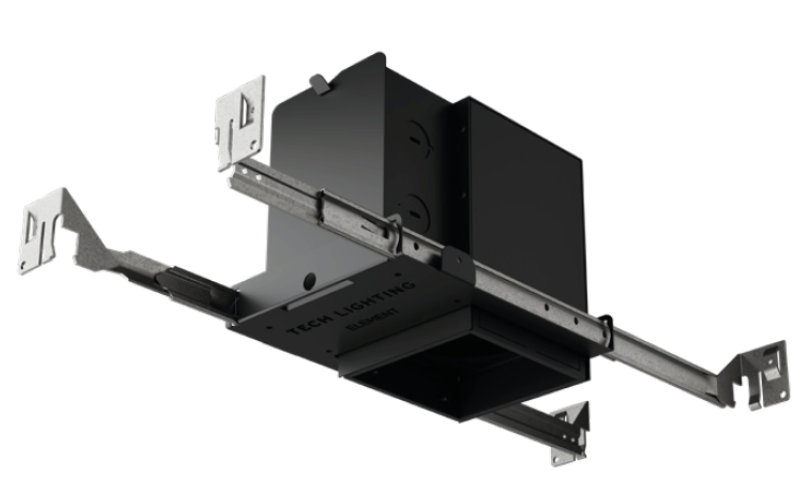

E3. ELEMENT 3'' LED DOWNLIGHTS IC REMODEL ADJUSTABLE AND NEW CONSTRUCTION MOUNTING.
Configure
Add to project
RESOURCES
DESCRIPTION
The ELEMENT 3" IC Remodel Adjustable and New Construction Downlight is a seamless fusion of the acclaimed ELEMENT 3" Adjustable Downlight with the convenience of a remodel fixture. Blending stunning architectural aesthetics with exceptional performance, this remodel downlight is specifically designed for insulation-contact applications. Experience complete adjustability through lockable, tool-free, hot aiming for effortless precision. With a compact form factor new construction option, enjoy added installation flexibility in tight ceiling conditions. The ELEMENT 3" IC Remodel Adjustable and New Construction Downlight offers premium LED options with Static White, Warm Dim, and Tunable White.
- IC-Rated and airtight
- Tool-free aiming and locking: 0°-40° tilt and 361° rotation
- Flangeless mud plate allows below-the-ceiling servicing and installation
- Trims match the ELEMENT 3" Platform
- Suitable for confined plenums
- Available with optional New Construction mounting hardware
- Reverse-phase, forward-phase, and TRIAC dimming down to 1%
- Multiple trim reflector options are available
- Solite Soft Focus lens options are available
- 2-step standard color binning
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.9"7"L: 3.9"7"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500KTunable White
- CRI80 90
- Watt(Approx)11 W
- Lumens(Approx)739 Lm938 Lm914 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 1%Dim to <1%0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VEldoLED 0-10V/DALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingIC Air TightRemodel IC Air Tight
- Housing Depth5.6 ''5.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
