Visual Comfort & Co.

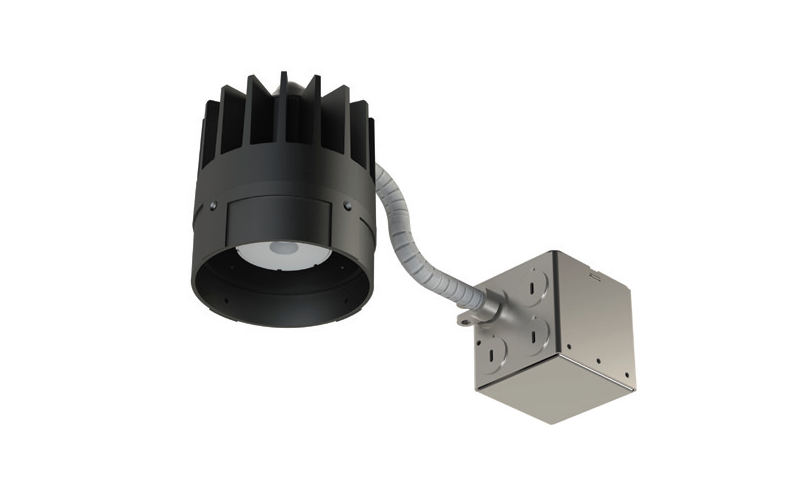

E3. ELEMENT 3'' LED REMODEL FIXED DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
The ELEMENT 3" LED Remodel is well suited for any remodel application. The flanged trim installation method accommodates any ceiling thickness. At a 5" depth from the bottom of the ceiling, it provides the perfect solution
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.3"L: 4.3"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K
- CRI80 90
- Watt(Approx)12 W16 W
- Lumens(Approx)941 Lm1303 Lm1225 Lm1697 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VeldoLED ECO 0-10VEldoLED ECO 0-10V/DALI
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywall
- HousingRemodel
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeE3RFD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
