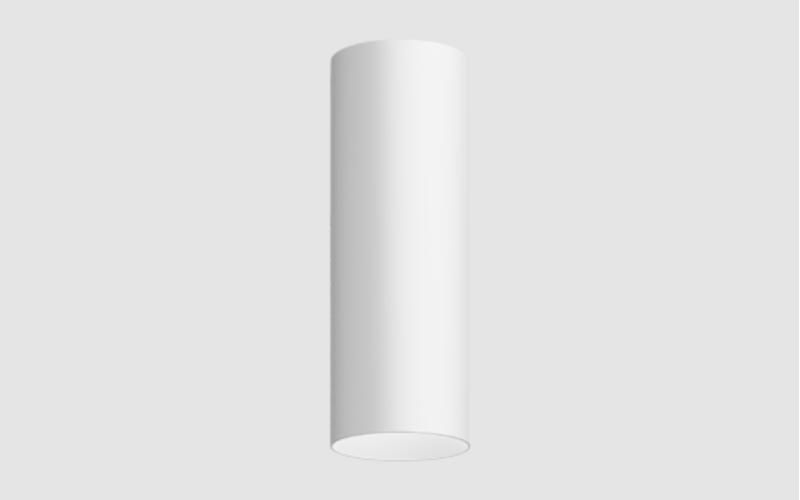

ENCY3R. ENTRA 3'' CYLINDER WALL WASH CYLINDER.
Configure
Add to project
RESOURCES
DESCRIPTION

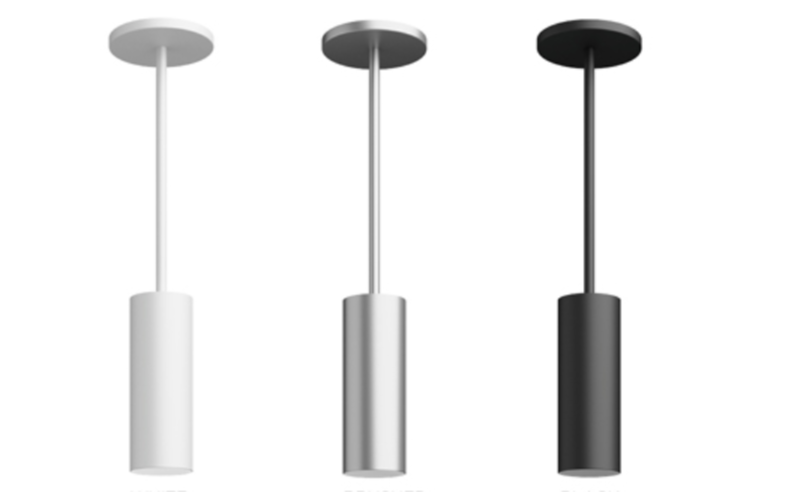

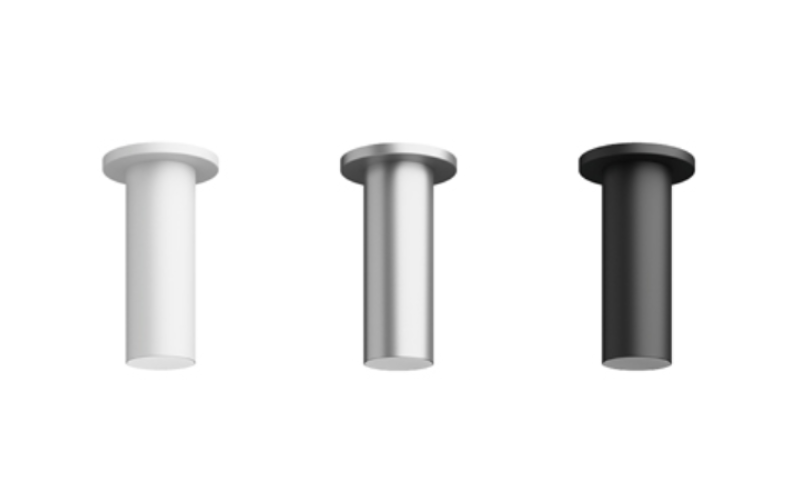

The ENTRA 3" Wall Wash Cylinder provides a cost-effective option with a modern aesthetic for residential, hospitality and commercial applications. ENTRA 3" Wall Wash Cylinders are a great solution for illumination in exposed ceiling applications. Mounting options include Flush Mount, Surface Mount, Pendant Mount and Conduit Mount. LED is recessed in the cylinder minimizing glare with Warm Dimming and Static White options. Available in Black, Brushed Aluminum and White (field paintable).
- Optimized Wall Wash beam distribution
- 1-step standard color binning
- Standard phase and 0-10V dimming down to 1%
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 3"H: 8.3"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K
- CRI80 90
- Watt(Approx)12 W15 W19 W
- Lumens(Approx)856 Lm1066 Lm1275 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/TrailingeldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
