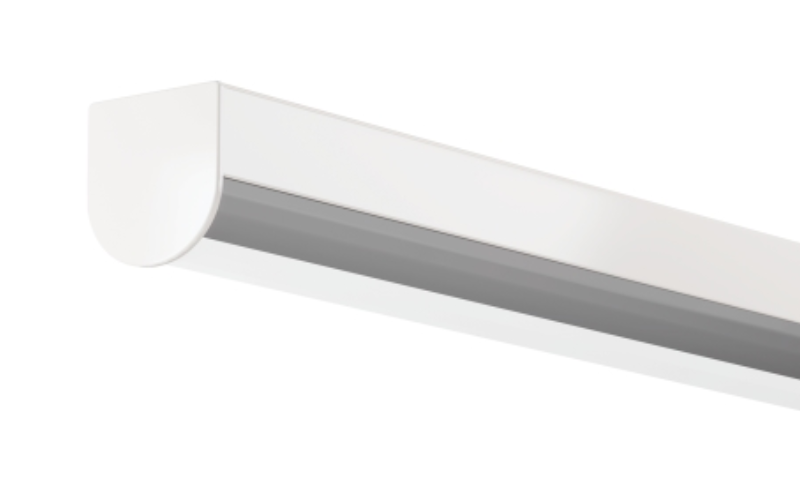

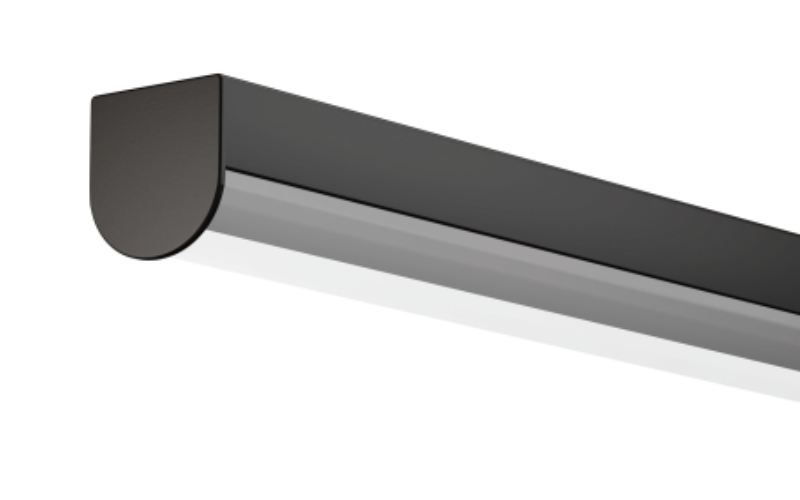

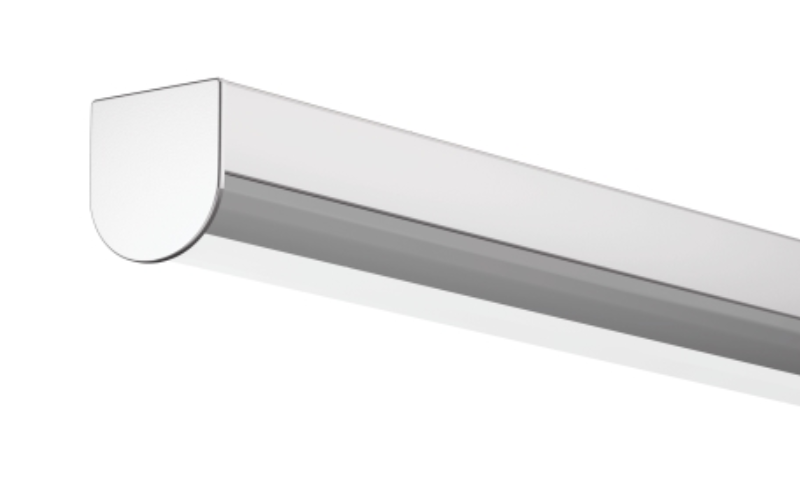

ESSF0809. ESSENCE SURFACE MOUNT 0809 GRAZER.
Configure
Add to project
RESOURCES
DESCRIPTION
ESSENSE Surface Mount Grazer beautifully illuminates the architectural details on walls highlighting texture and shadow and creating visual interest.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: .84"L: Run length (Ft)Run length (inch)H: .85"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K4000K
- CRI97 95
- Watt(Approx)1.9 W/Ft2.5 W/Ft4.6 W/Ft3.4 W/Ft5.3 W/Ft7.3 W/Ft
- Lumens(Approx)70 Lm/Ft65 Lm/Ft90 Lm/Ft165 Lm/Ft125 Lm/Ft245 Lm/Ft
- OpticsDirectGrazing
- Adjustable
- DimmingDim to 3-10%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-Lume 3-wire (L3D)eldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLT24*
- EnvironmentDamp
- Mounting TypeCeiling SurfaceMagnetic System
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeESSF0809
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
