Visual Comfort & Co.

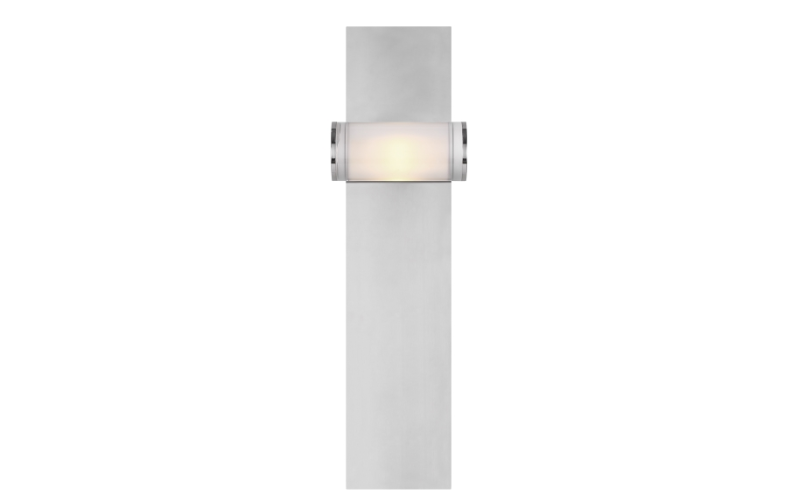

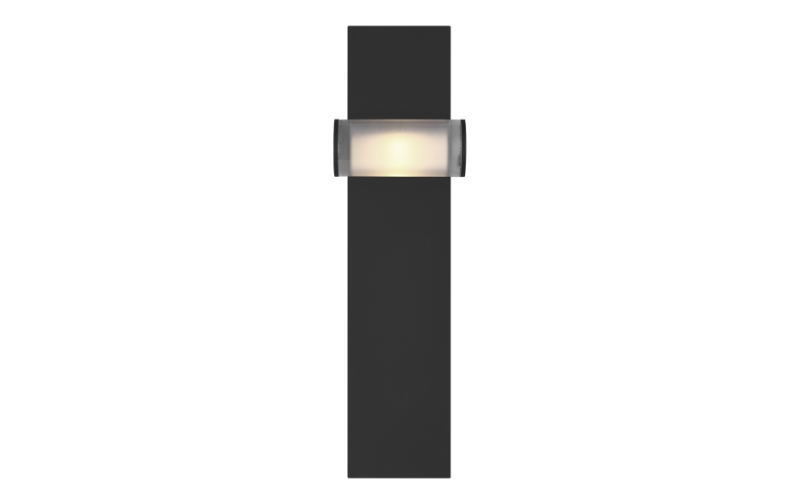

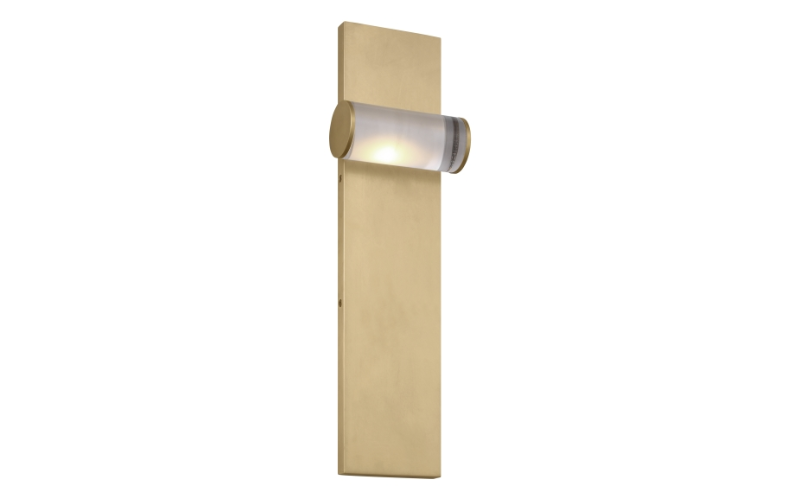

KWWS100. ESFERA MEDIUM SCONCE.
Configure
Add to project
RESOURCES
DESCRIPTION
Includes 7.7 watt, 158 delivered lumens, 2700K LED module. 120V dimmable with most LED compatible ELV and TRIAC dimmers. 277V compatible with 0-10V dimmers. Mounts vertically only. 120V or 277V.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 4.5"H: 20"
- Light SourceLED
- CCT/Color2700K
- CRI90
- Watt(Approx)7.6 W
- Lumens(Approx)189 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeKWWS100
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
