Vode Lighting

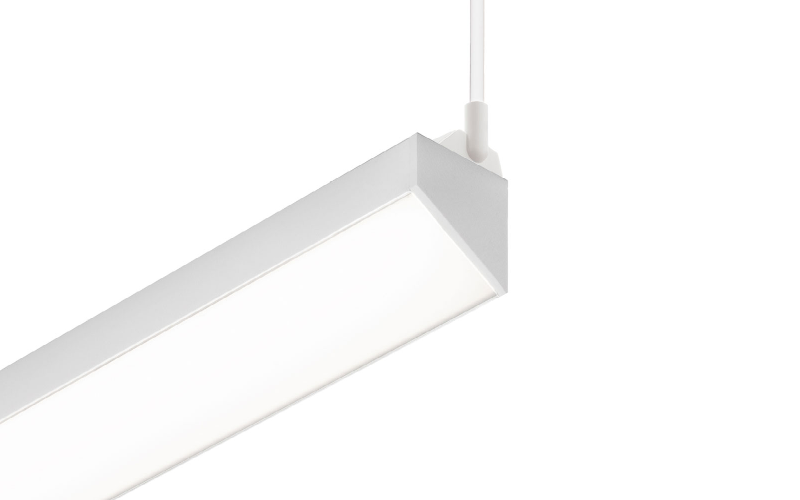

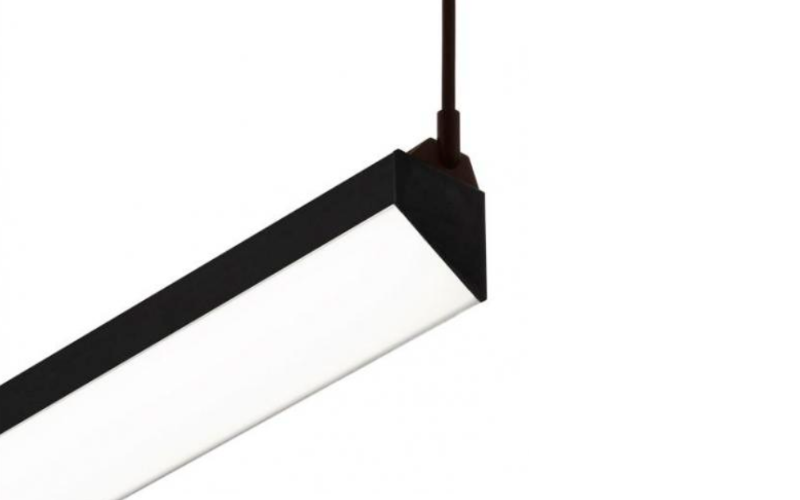

707-Z2. ZipTwo Square 3535/30 Ceiling Cable.
Configure
Add to project
RESOURCES
DESCRIPTION
Direct lighting for open office and ambient applications.
Benefits & Features
Minimal Profile, Robust Design
Asymmetric profile. 1.38” (35mm) x 1.42” (36mm) / 30°.
Superior Light Quality & Performance
Output up to 1068 lm/ft (3503 lm/m) (HO), 109 lm/W (SO). 80 & 90 CRI & tunable white (2200-5000K) available.
Adaptive Power
Full range dimming power for all protocols. Integral or remote power available. Remote power available up to 100' (30.5m) away.
Discrete Wall Washer
Asymmetric lens with Soft Wash minimizes glare while subtly casting light on a surface.
Benefits & Features
Minimal Profile, Robust Design
Asymmetric profile. 1.38” (35mm) x 1.42” (36mm) / 30°.
Superior Light Quality & Performance
Output up to 1068 lm/ft (3503 lm/m) (HO), 109 lm/W (SO). 80 & 90 CRI & tunable white (2200-5000K) available.
Adaptive Power
Full range dimming power for all protocols. Integral or remote power available. Remote power available up to 100' (30.5m) away.
Discrete Wall Washer
Asymmetric lens with Soft Wash minimizes glare while subtly casting light on a surface.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.38"L: 2 Ft3 Ft4 Ft5 Ft6 Ft8 Ft9 Ft10 Ft11 Ft12 FtRun length (Ft)H: 1.42"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)3.8 W/Ft6.6 W/Ft9.9 W/Ftcustom
- Lumens(Approx)356 Lm/Ft712 Lm/Ft1068 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%Lutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDLC*T24*RoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time707-Z2-S-S-3535-30
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
