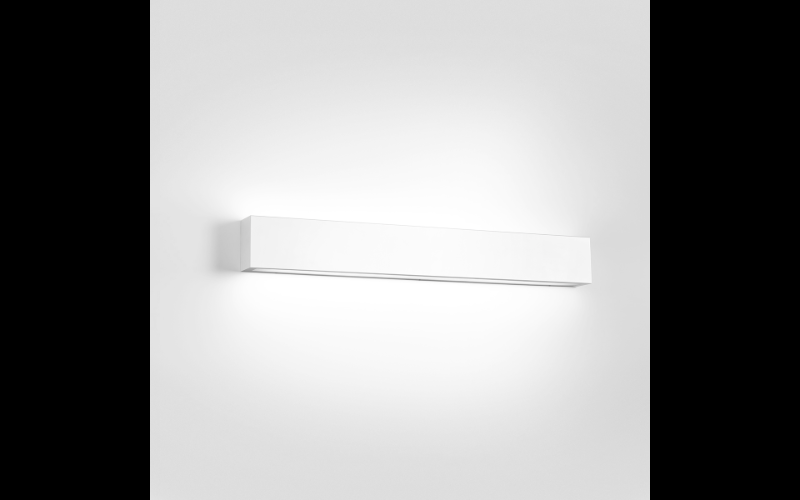

CB3170. LINEAR ART SCONCE.
Configure
Add to project
RESOURCES
DESCRIPTION
This simple linear wall sconce brings comfortable indirect light to workplace and educational spaces. Glare-free illumination comes from the top and bottom openings, while the smooth painted housing adds warmth and color. Linear Art Sconce is available with a headwall model and general use models of various lengths.
- This simple linear wall sconce brings comfortable indirect light to workplace and educational spaces. Glare-free illumination comes from the top and bottom openings, while the smooth painted housing adds warmth and color
- Modular design for replacement of LED source and driver
- Mounts to standard electrical junction box (by others) with provided hardware
- Heavy gauge fabricated metal housing
- Optional express 10 day shipping (XPS)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 49 1/4"H: 6 1/2"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI93 83
- Watt(Approx)41 W67 W
- Lumens(Approx)5500 Lm3600 Lm3700 Lm5600 Lm
- OpticsIndirect/DirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USAADA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
