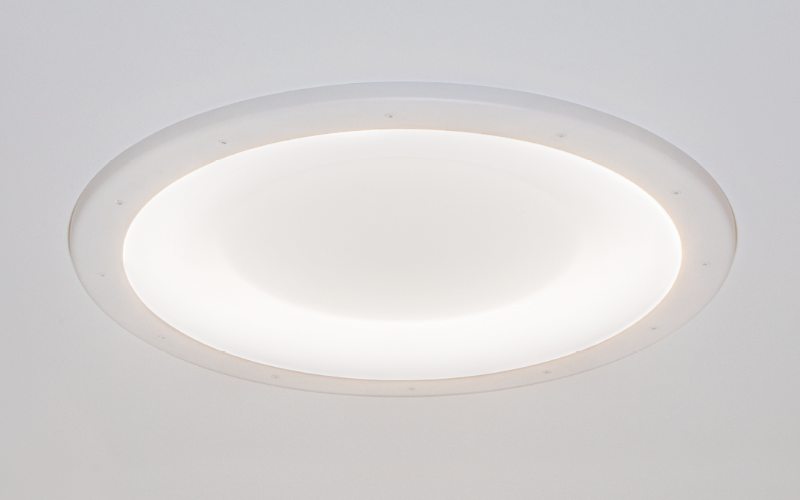

CM1986-W. SYMMETRY Behavioral Health — 23 Overbed — White LED.
Configure
Add to project
RESOURCES
DESCRIPTION
Symmetry is offered in six models to be used throughout a behavioral health/high abuse facility, including 23" and 45" models for general use, tunable/circadian lighting, and patient room overbed. These behavioral health/high abuse models have general use Symmetry's same shape with the addition of 3/16” polycarbonate lenses and tamper resistant fasteners.
- IK10+ (100 joules) impact resistant
- 3/16” high impact clear polycarbonate overlay
- Tamper resistant fasteners
- Suitable for t-grid installation (45" models only)
- Suitable for drywall/sheetrock installation
- Optional nightlight
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23 1/2"L: 23 1/2"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90 80
- Watt(Approx)124 W
- Lumens(Approx)9800 Lm10100 Lm10300 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%DALI
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentAntimicrobial FinishDampPatient RoomHealthcare General
- Mounting TypeCeiling RecessedDrywall
- HousingNew Construction
- Housing Depth6 5/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
