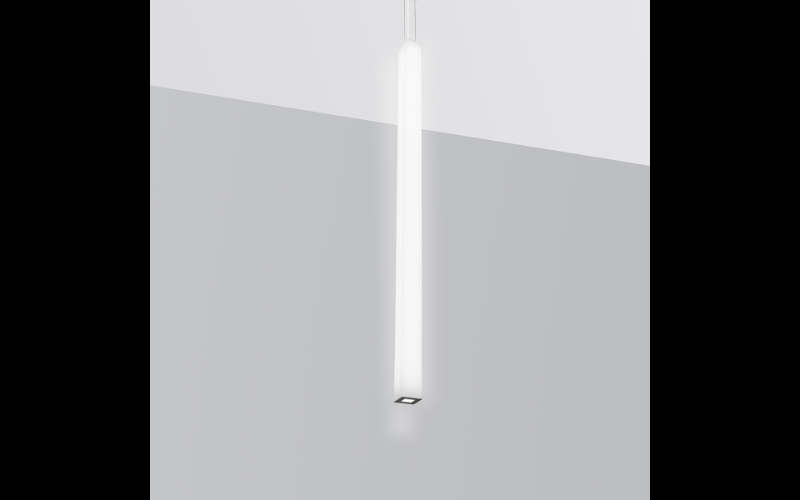

CP5830. SEQUENCE SQUARE 4 W x 8' H Body - Cable Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION
Inspired by our popular Sequence family, Sequence Square luminous rectilinear pendants allow designers to further accentuate vertical lines in the interior architecture. Mounted in clusters of various model lengths and widths, these pendants evoke an eye-catching crystalline structure. Most importantly, the acrylic body is fully luminous, which means illumination doesn’t diminish at the corners or ends.
- Top mounted driver is standard on 4" models with optional remote driver
- Color changing RGB LED is DMX-512 compatible
- Optional LED downlight, 0-10V dimmable, with narrow, medium, or wide optical distribution options
- Mounts to standard electrical junction box with provided hardware
- Matte white rectilinear acrylic body
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/2"L: 4 1/2"H: 103 1/4"90 5/8"106 1/8"93 1/2"
- Light SourceLED
- CCT/Color3000K3500K4000KRGB
- CRI83
- Watt(Approx)57 W60 W
- Lumens(Approx)6100 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
