Visa Lighting

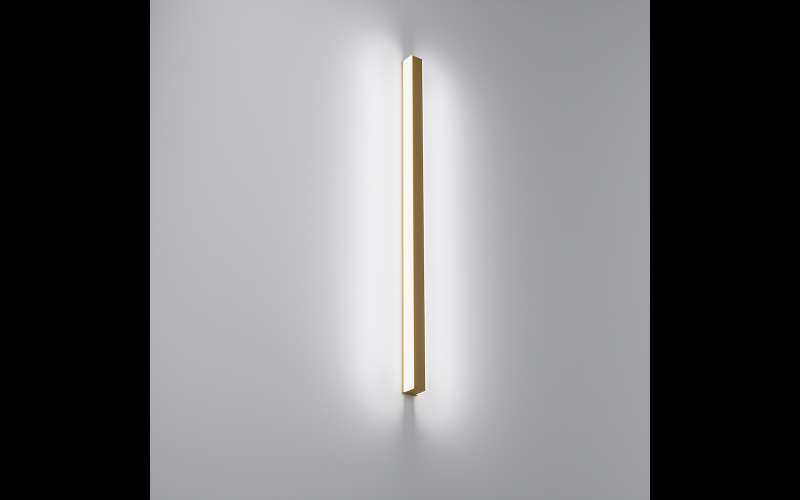

CV1972. SLEIGHT 32 Recessed Mount - Integral Power Supply.
Configure
Add to project
RESOURCES
DESCRIPTION
The simple edge-lit form of Sleight provides performance illumination in a low profile package. It only protrudes from the wall 1-3/8", which makes it ideal for narrow corridor spaces. It is designed to mount on the ceiling or wall with vertical or horizontal orientations. The decorative, wall-grazing product integrates with the architectural design using either surface mount or semi-recessed with mud-in frame versions.
Sleight is a low energy LED luminaire with optional 0-10V LED dimming in installations with remote power supply. Multiple units can be interfaced with a single power supply and class II wiring.
Sleight is a low energy LED luminaire with optional 0-10V LED dimming in installations with remote power supply. Multiple units can be interfaced with a single power supply and class II wiring.
- Integral driver
- Ceiling or wall mount (horizontal or vertical orientation)
- Semi-recessed (mud-in required; mud frame included)
- Not for installation in ceiling grid system
- Frosted acrylic diffuser
- MRI available on surface mount models only
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/8"L: 32"H: 1 3/8"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)13 W29 W
- Lumens(Approx)450 Lm1100 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USAADA
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywall
- HousingNew Construction
- Housing Depth3 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCV1972
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
