Visa Lighting

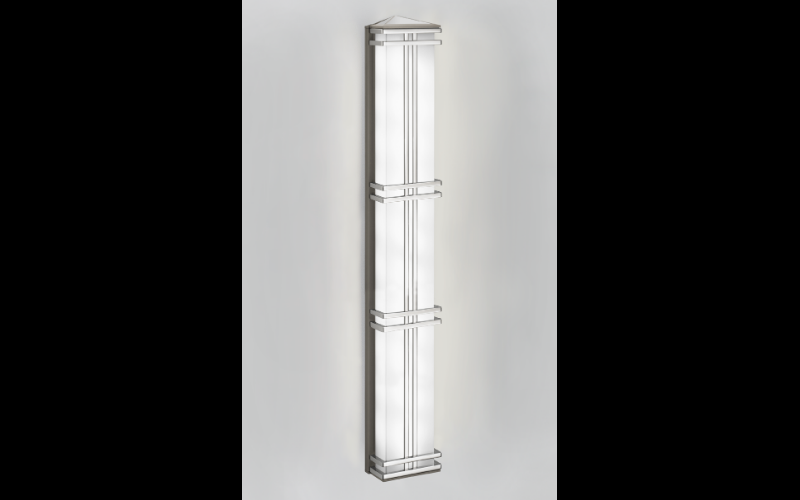

OW1297. IMAGE Outdoor Wall.
Configure
Add to project
RESOURCES
DESCRIPTION
The Image family of luminaires provides tasteful ambient light and flexible design options. These versatile fixtures can be mounted on walls in vertical or horizontal orientations. Image’s quality construction includes solid metal trim and die cast end caps with finish options to meet any design aesthetic.
- Integral driver
- Modular design for replacement of LED source and driver
- Removable cam-action hinged frame for ease of maintenance
- Optional express 10 day shipping (XPS)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 7 1/4"H: 47 7/8"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI83
- Watt(Approx)25 W38 W
- Lumens(Approx)2300 Lm3400 Lm3500 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USAADA
- EnvironmentWet
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeOW1297
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
