Visa Lighting

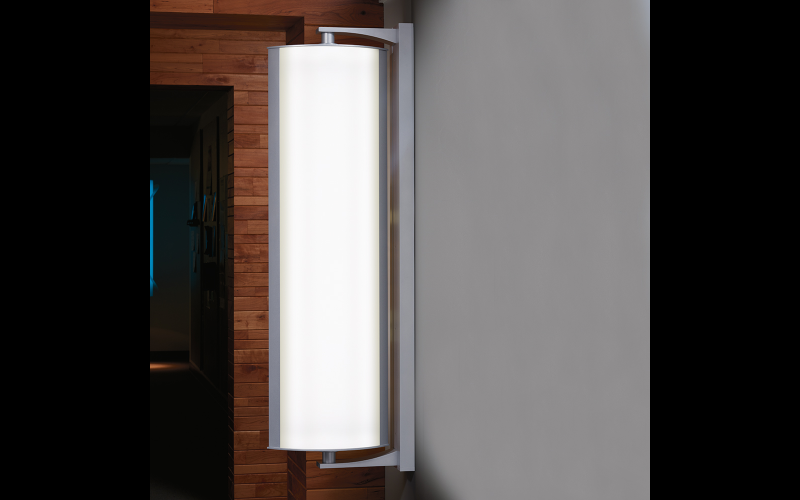

OW5303. AIR FOIL.
Configure
Add to project
RESOURCES
DESCRIPTION
Air Foil exterior wall sconces feature a refreshingly unique elliptical shape which creates a luminous plane of light to enhance exterior elevations and entryways. Air Foil sconces are available in multiple sizes and have four field adjustable aiming angles. The impact resistant white acrylic diffuser is ETL listed for wet location mounting four feet above grade.
- Integral driver
- Modular design for replacement of LED source and driver
- Mounts over junction box to structural source/blocking
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 18 1/2"L: 7 1/4"H: 54 1/4"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI83
- Watt(Approx)49 W
- Lumens(Approx)5900 Lm6100 Lm
- OpticsOmni-DirectionalGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeOW5303
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
