Visioneering (Viscor, a Leviton company)

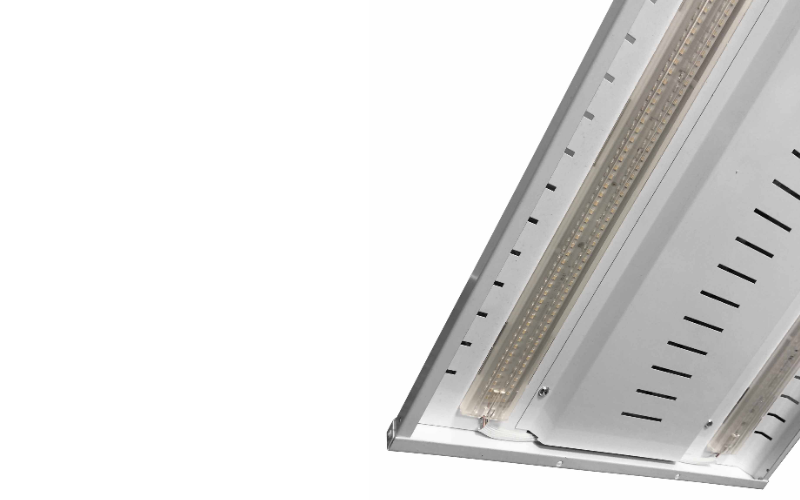

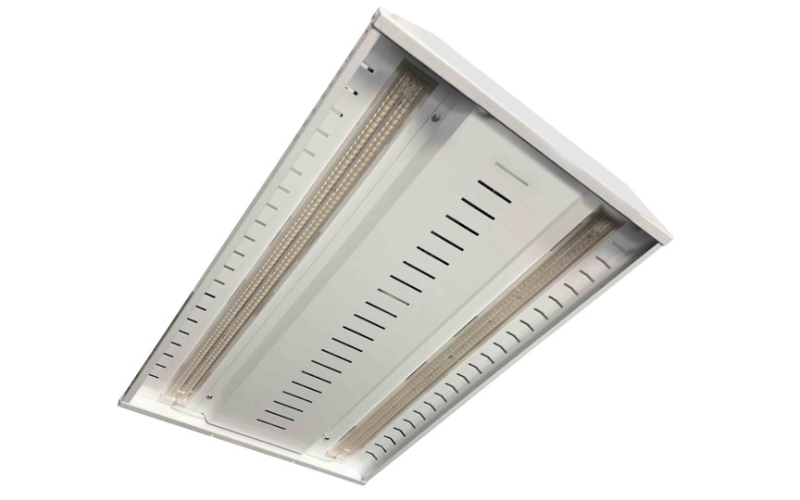

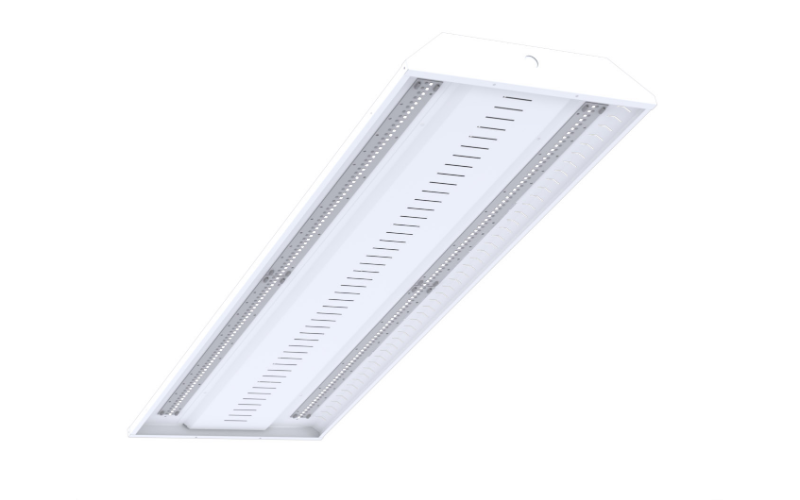

LHBC. NARROW DISTRIBUTION Commercial-Grade High or Low Bay Recessed Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The LHBC Narrow provides a 30 degree distibution angle for applications requiring narrow illumination. Thermally designed for high bay applications, this LED fixture is available in multiple lumen packages and various mounting options. Optional wire guard is available for those demanding areas where impact from objects is possible. Operating ambient temperature range as low as -30°C to as high as 55°C on most models (see delivered lumens tables).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16"24"L: 24"48"H: 3"
- Light SourceLED
- CCT/Color4000K5000K
- CRI80
- Watt(Approx)74 W98 W150 W117 W139 W204 W234 W278 W312 W411 Wcustom
- Lumens(Approx)12280 Lm15661 Lm18504 Lm24814 Lm21671 Lm32644 Lm37581 Lm43991 Lm49992 Lm63722 Lmcustom
- OpticsDirectFlood
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLHBC-ND
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
