Visioneering (Viscor, a Leviton company)

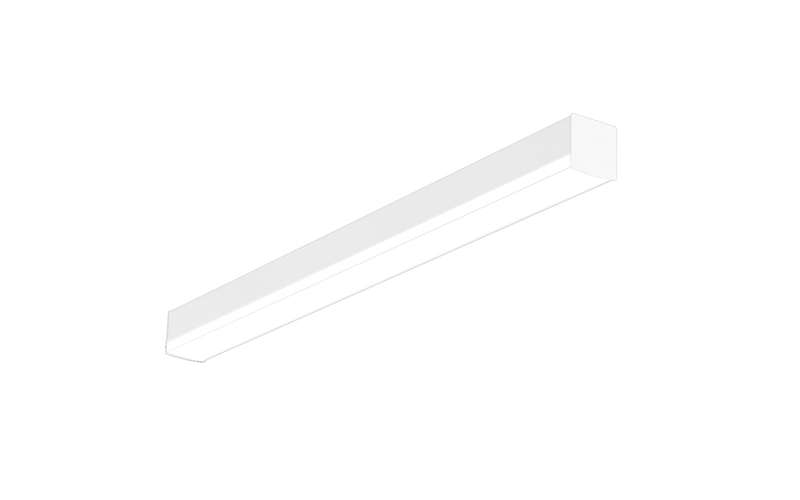

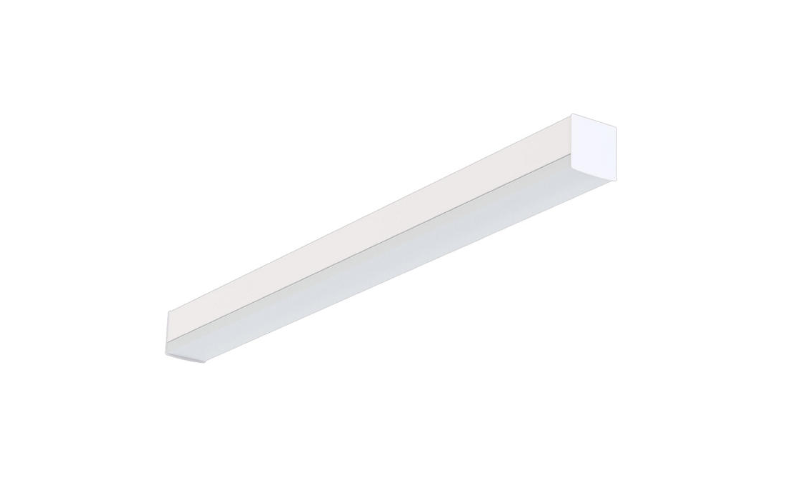

LMEZ3. LED - Suspended Direct Luminaire with Drop-Rectangular Lens SQUARE.
Configure
Add to project
RESOURCES
DESCRIPTION
The LMEZ3 Square with drop-lens is a premium-grade, LED luminaire designed for indoor applications where direct linear lighting is desired. This luminaire provides general illumination in both the horizontal and vertical planes and is suitable for individual. The LMEZ3 Square offers simple elegance, uniform illumination, and visual comfort for office, retail, grocery, education, aisle, hospitality applications, and more.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 22.25"44.25"66.375"88.5"H: 3"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)3.1 W/Ft7.5 W/Ft11.85 W/Ftcustom
- Lumens(Approx)433 Lm/Ft1006 Lm/Ft1510 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLDLC*
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
