LMNE. LED Magic Neutron.
Configure
Add to project
RESOURCES
DESCRIPTION

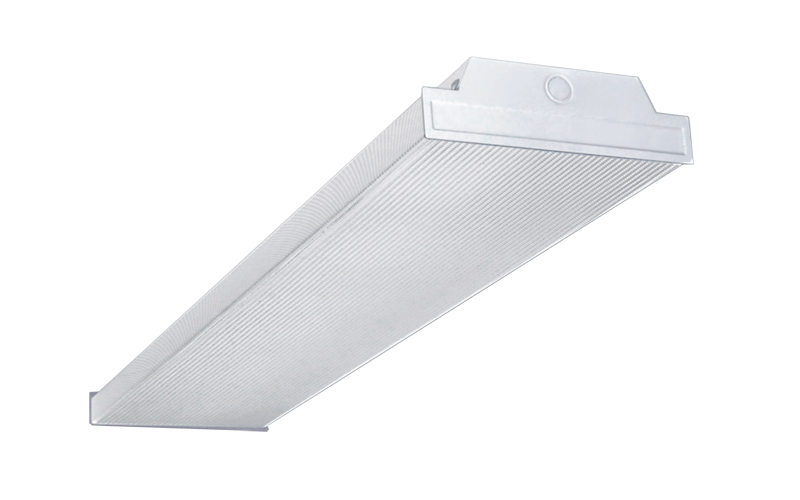

Premium-grade, surface-mounted wrap-around ceiling luminaire. For use with indoor applications where low-cost, but commercial grade ruggedness and compact design is required.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 9 3/16"L: 24"48"96"H: 3 1/8"
- Light SourceLED
- CCT/Color3500K4000K
- CRI89
- Watt(Approx)13.4 W26.8 W53.6 W
- Lumens(Approx)2163 Lm4326 Lm8651 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLMNE
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
