Visioneering (Viscor, a Leviton company)
LRTG. ClearForm-Wet Location LED - Premium-Grade Recessed Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION

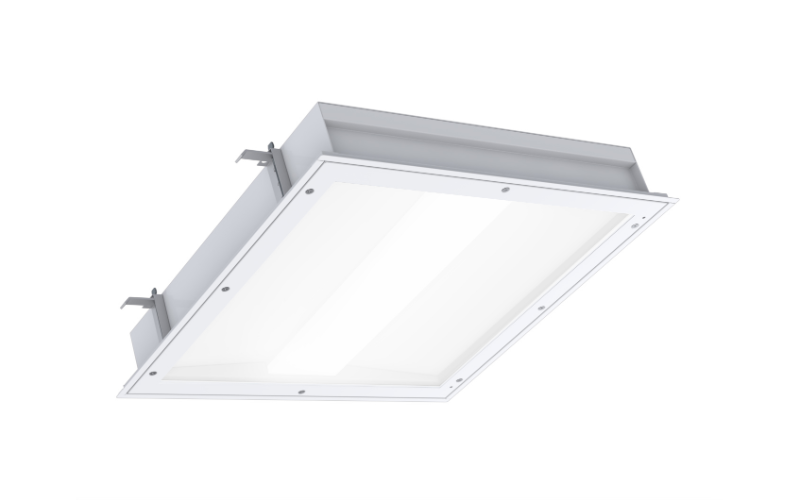

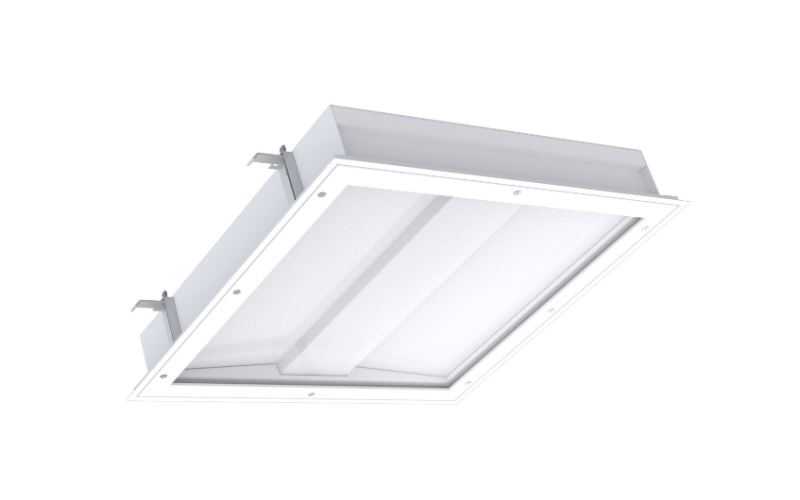

Premium-grade enclosed and gasketed luminaire. Standard internal “wing” lenses are made with UV-stabilized, impact-resistant frosted virgin white acrylic. This IC-rated luminaire’s shallow design and dust and moisture resistance, make it ideal for use with indoor and outdoor (canopy) applications that require a wet location recessed lay-in T-Bar/Drywall luminaire with door frame.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI89
- Watt(Approx)28 W36 W55 W70 W
- Lumens(Approx)4023 Lm3750 Lm5050 Lm7435 Lm9212 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Bi-Level0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULNSF
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3 15/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLRTG-C29
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
