Visioneering (Viscor, a Leviton company)
LRTH. LED Recessed Type H - Architectural Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION

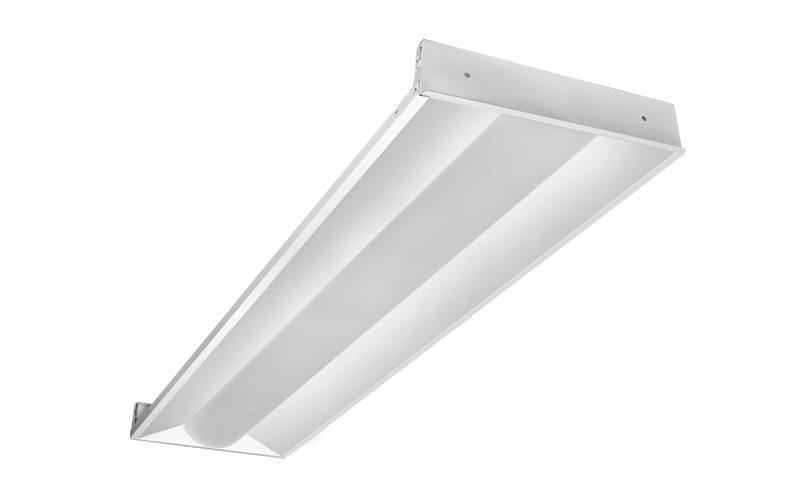

Commercial-grade, recessed, lay-in coffered T-Bar troffer with modern styling and high visual comfort featuring a single shallow semi-round lens. For use with indoor applications where low-glare, high-quality and ease of installation are required. This IC-rated luminaire's low-profile design makes it ideal for shallow or obstructed plenum applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft1.5 Ft2 FtL: 2 Ft4 Ft5 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI89 90
- Watt(Approx)13 W21 W28 W34 W31 W43 W50 W57 W58 W70 W81 Wcustom
- Lumens(Approx)2037 Lm4701 Lm3178 Lm4058 Lm4504 Lm5036 Lm6008 Lm7214 Lm8008 Lm8552 Lm10072 Lm12037 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Bi-Level0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth2 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLRTH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
