Visioneering (Viscor, a Leviton company)
LRTP. LED Recessed Type P - Architectural Lighting.
Configure
Add to project
RESOURCES
DESCRIPTION

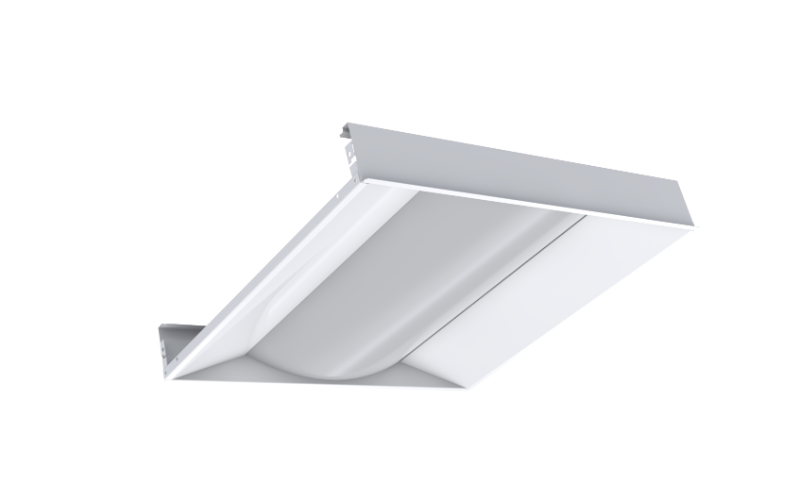

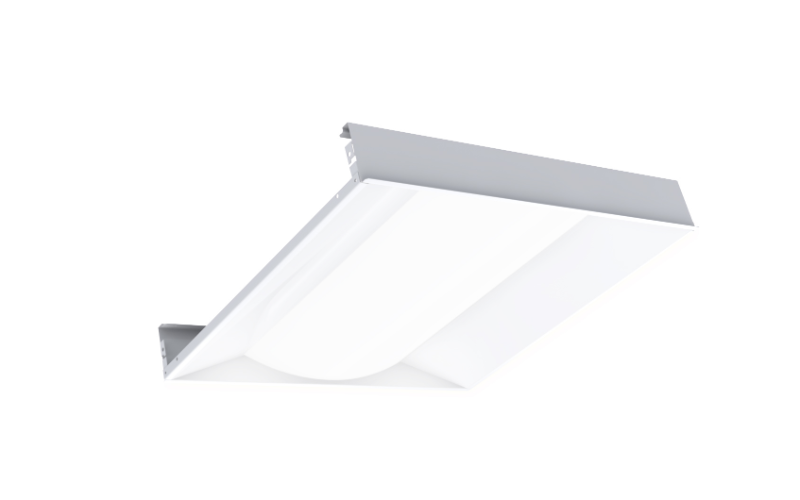

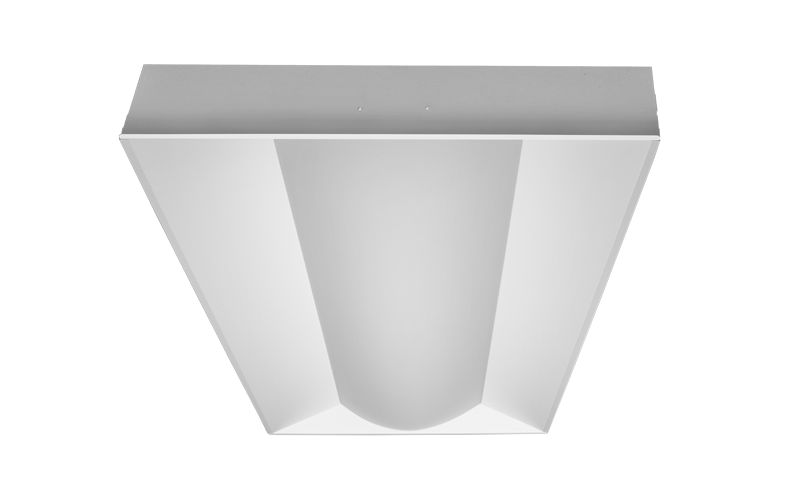

Commercial-grade, recessed, lay-in T-Bar troffer featuring a wide curved lens for even light distribution. This fixture offers a modern architectural styling with a high visual comfort.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI89 90
- Watt(Approx)21 W28 W27 W30 W29 W35 W42 W
- Lumens(Approx)3044 Lm3886 Lm3991 Lm4016 Lm4346 Lm5049 Lm6087 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Bi-Level0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLRTP_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
