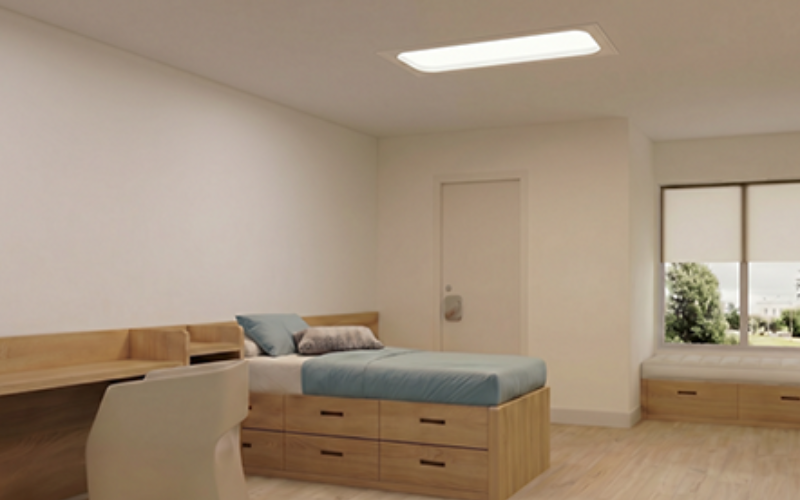

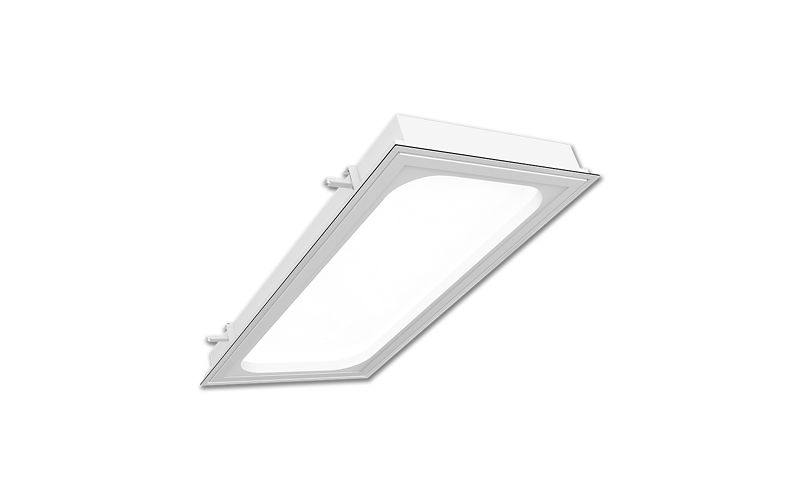

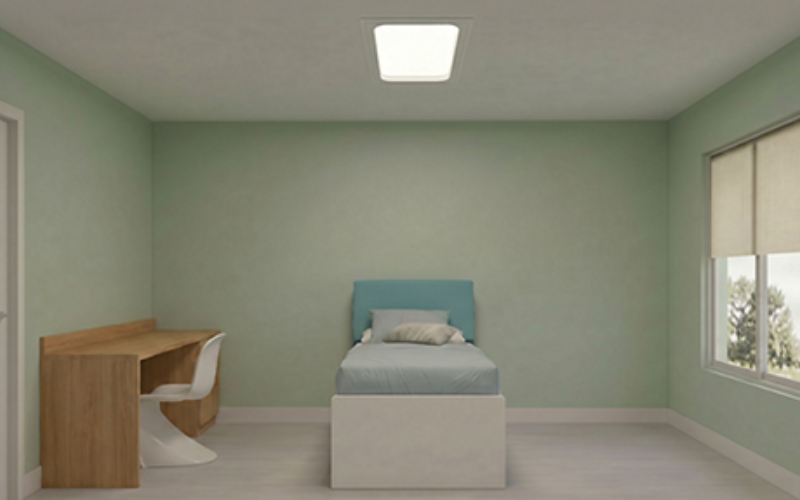

MBH2-ALTO delivers advanced patient room lighting purpose-built for behavioral health spaces where safety, durability, and performance must work together. This recessed over-bed luminaire combines ambient and exam illumination in a single, integrated fixture, providing caregivers with flexible lighting control while maintaining a calming environment for patients. Designed with ligature resistance and ease of maintenance in mind, this solution addresses the specific demands of modern medical lighting applications without compromising on aesthetics or functionality.

Built with a die-formed cold rolled steel housing and antimicrobial powder-coated finish, the MBH2-ALTO supports long-term durability in demanding environments. Its patented ShieldCare inset door allows room-side servicing while maintaining a ligature-resistant profile, a critical feature in behavioral health lighting applications. The fully diffused, regressed lens enhances visual comfort by reducing glare and creating depth, which contributes to a more comfortable patient experience. Pressure-sensitive gasket systems seal the fixture against contaminants, helping support cleanability and infection control standards.

Performance is tailored through high-efficiency LED modules that support both ambient and exam modes, allowing facilities to choose different lumen outputs, color temperatures (3000K, 3500K, 4000K), and CRI options up to 97. This flexibility ensures accurate visual assessment during exams while maintaining softer lighting conditions for patient rest. The system achieves strong output with high efficacy and maintains consistent color performance over time, with an L70 rating exceeding 60,000 hours. Advanced optical performance delivers effective illumination levels across the bed and surrounding area, supporting clinical tasks without unnecessary brightness.

Ease of integration is another key advantage. The MBH2-ALTO includes programmable 0–10V dimming drivers and optional low voltage controls that can interface with nurse call systems or patient bed controls. This enables intuitive control over lighting levels and modes, enhancing both patient comfort and caregiver efficiency. Installation flexibility supports both grid and hard ceiling applications, and the fixture is ETL listed for damp locations with an IP64 rating, ensuring reliability in healthcare environments. The design also meets FGI guidelines for Level 4 behavioral health spaces, reinforcing its suitability for high-acuity settings.

With a balance of safety, performance, and adaptability, MBH2-ALTO stands out as a dependable choice for facilities seeking a refined over-bed luminaire that meets the evolving demands of medical lighting and behavioral care spaces. Its thoughtful engineering supports both clinical precision and patient well-being, making it a strong addition to any patient-centered design strategy.

• Combines ambient and exam lighting functions in a single patient room lighting fixture for enhanced versatility and caregiver control.
• Patented ShieldCare inset door ensures ligature resistance while allowing safe, room-side maintenance.
• High-performance LED system offers multiple CCT and CRI options up to 97 for accurate clinical lighting.
• Durable antimicrobial powder-coated housing with sealed gasket system supports infection control and easy cleaning.
• Meets FGI Level 4 behavioral health guidelines and is rated IP64 for reliable operation in healthcare environments.
