Certolux (Viscor, a Leviton company)

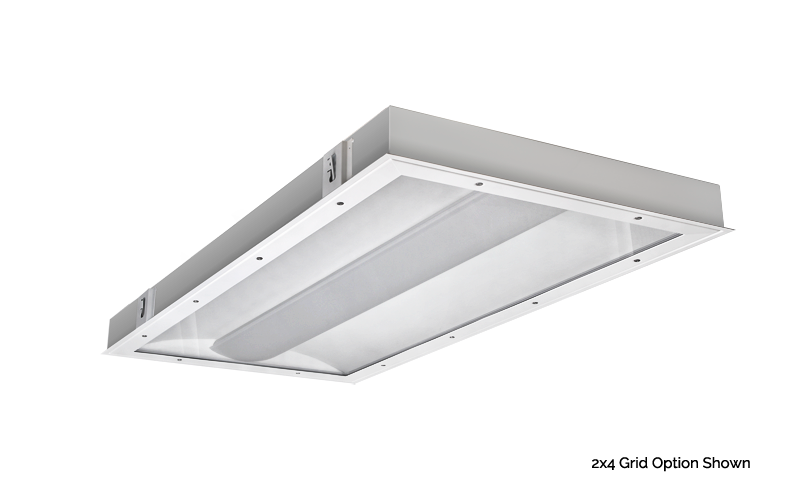

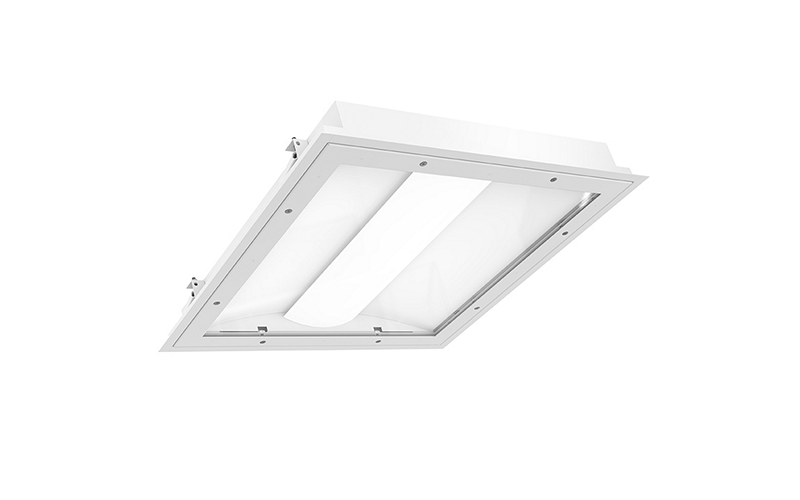

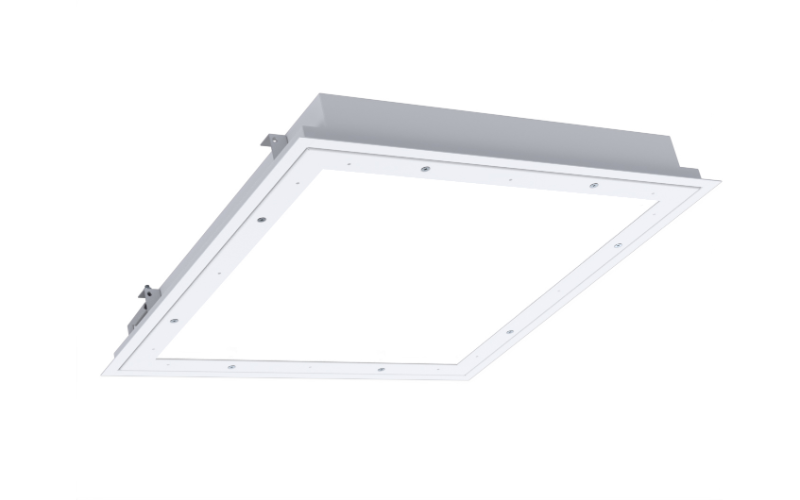

MD1-4104. Recessed Medical Patient Ambient LED Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The MD1 series by Certolux is a specification-grade, LED luminaire which provides a cost-effective patient room lighting solution. Designed as a sealed Ambient light for hospitals, nursing homes and other patient care facilities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3500K4000K
- CRI89
- Watt(Approx)36 W31 W47 W75 W
- Lumens(Approx)3900 Lm3300 Lm5200 Lm7800 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentAntimicrobial FinishDampIP65Healthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMD1-4104
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
