Certolux (Viscor, a Leviton company)

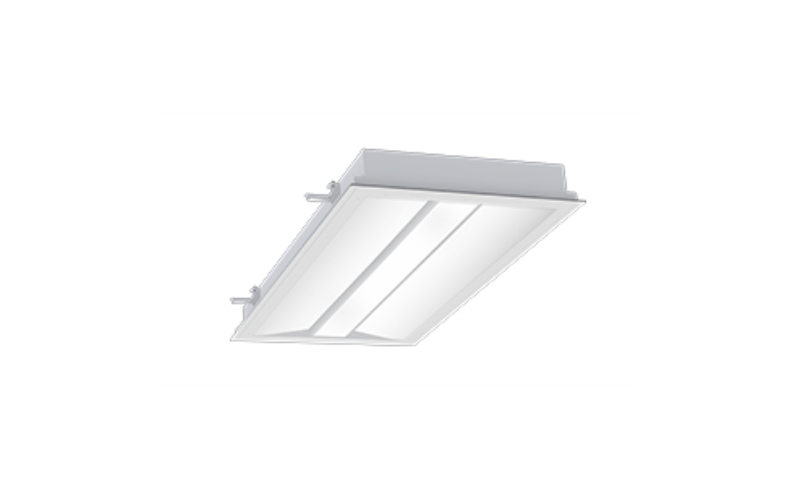

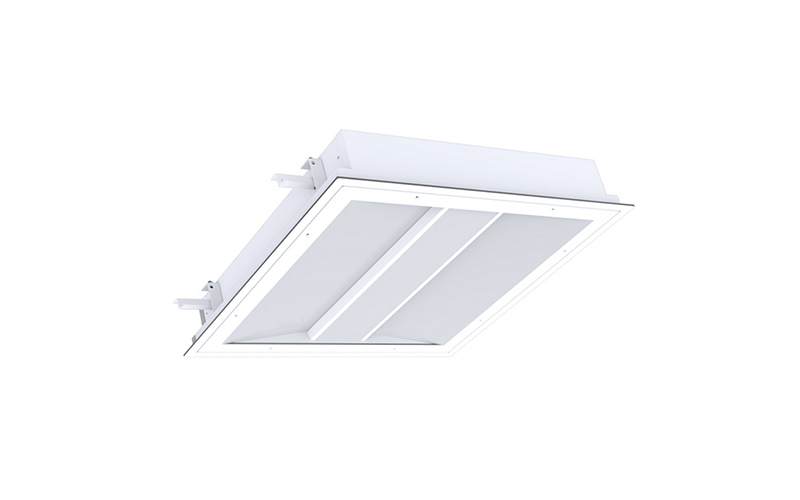

MD1U. Patient Room LED - Recessed Ceiling Luminaire with Inset or Overlapping Door Frame.
Configure
Add to project
RESOURCES
DESCRIPTION
Certolux’s new MD1U Patient Room Luminaire is a versatile recessed fixture. The MD1U series by Certolux is a recessed IC-rated IP65 standard luminaire suitable for grid and flanged patient room applications. This luminaire features an architectural design and is triple gasketed for a reliable seal. The MD1U is a one-piece housing construction that comes standard with an antimicrobial finish. This luminaire provides an architectural design aesthetics for patient needs with multiple outputs to support the various activities of a patient care space.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)27 W40 W79 W113 W
- Lumens(Approx)3000 Lm4500 Lm9000 Lm12500 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentAntimicrobial FinishDampPatient Room
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingIC
- Housing Depth4 1/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMD1U-C84
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
