Certolux (Viscor, a Leviton company)

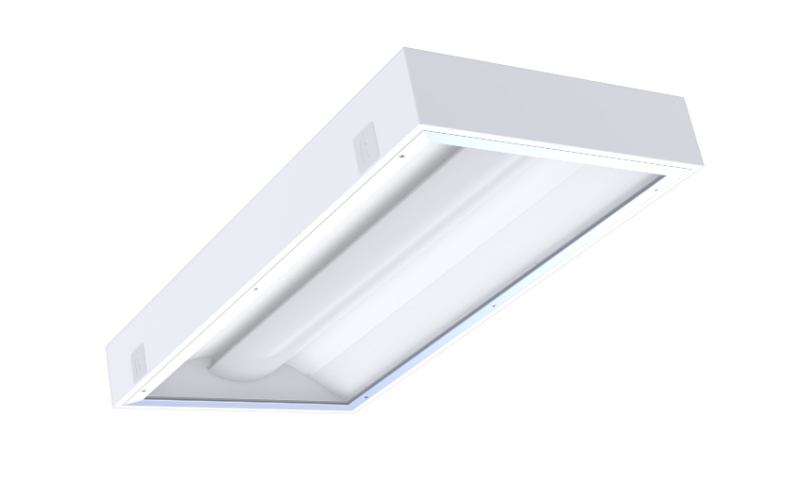

MD2-3461. LED - Recessed or Surface Medical Patient Ambient/Exam Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The MD2 series by Certolux is an IC-rated specification-grade, LED luminaire which provides a cost-effective patient room lighting solution. Designed as a combination Ambient/Exam light for hospitals, nursing homes and other patient care facilities. Eliminates the need for wall mounted luminaires. The flexibility of the nominal 2’ x 4’ singular modular installation makes this an excellent ceiling-mount fixture. For use in insulated ceilings.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 FtH: 5.5"
- Light SourceLED
- CCT/Color3500K4000K5000K
- CRI80 90
- Watt(Approx)72 W86 W100 W114 W144 W228 W174 W198 W
- Lumens(Approx)6000 Lm9400 Lm7200 Lm8200 Lm12000 Lm14400 Lm18800 Lm16400 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentAntimicrobial FinishIP65Patient Room
- Mounting TypeCeiling SurfaceCeiling RecessedT-Grid Ceiling
- HousingIC
- Housing Depth5.5 ''
