Certolux (Viscor, a Leviton company)

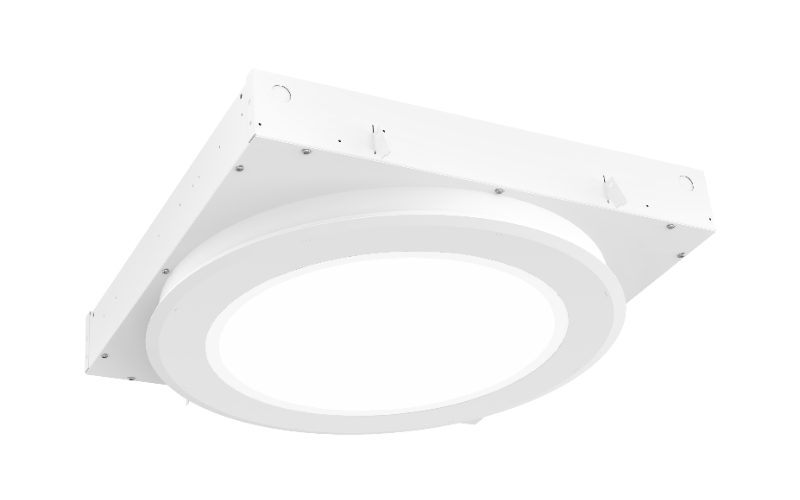

MD2-DCR. LED - Patient Room Dished Circular Recessed Exam and Ambient Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The MD2-DCR is a unique patient room fixture with a concave diffuse dome lens that provides a separately controlled, high-performance exam and comfortable ambient illumination. The color temperature and color rendering options are separately selectable. The one-piece smooth lens is sealed and easily wiped. An optional low voltage controller is available with dimming or non dimming functions. Also available with a separate Chart/Night observation light option.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 22.75”L: 22.75”
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)75.4 W88.5 W87.7 W100.8 W100.2 W
- Lumens(Approx)7046 Lm8041 Lm8077 Lm9072 Lm9059 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentAntimicrobial FinishDampPatient RoomHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingIC
- Housing Depth5.25 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
