Certolux (Viscor, a Leviton company)

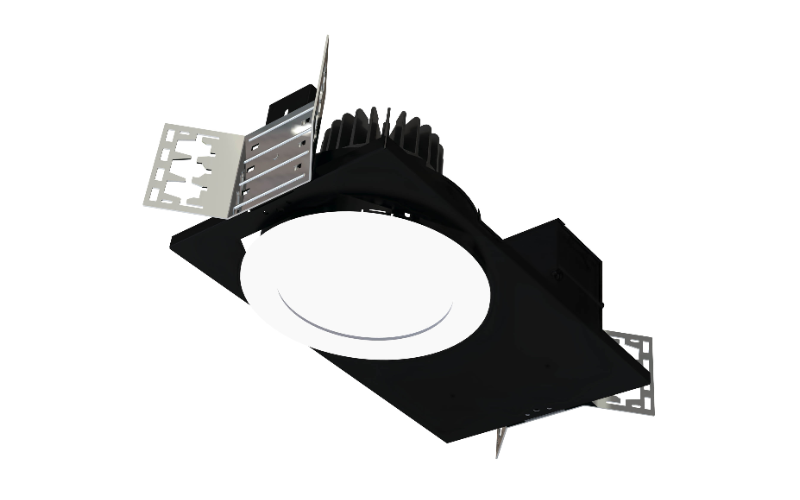

MDD-6. LED - Patient Room 6” Downlight Luminaire.
Configure
Add to project
RESOURCES
DESCRIPTION
The 6" Patient Room downlight brings a refined aesthetic with a highly functional design. The low-profile trim adds a touch of sophistication, while avoiding any clinical or institutional impression typically found in similar fixtures. These gasketed regressed lensed luminaires are designed to seal the ceiling and prevent the entrance of contaminated air into the patient room. Capable of up to 5000 lumens, these fixtures provide full range dimming to 1% offering the flexibility desired by patients and staff.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.34"L: 8.34"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90 97
- Watt(Approx)10.2 W15.4 W20.5 W25.6 W30.8 W35.9 W41.3 W46.2 W51.3 Wcustom
- Lumens(Approx)1109 Lm1664 Lm2218 Lm2773 Lm3328 Lm3882 Lm4437 Lm4991 Lm5546 Lmcustom
- OpticsDirectMediumWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULNSF
- EnvironmentAntimicrobial FinishIP65Patient Room
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth5.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMDD-6
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
