Certolux (Viscor, a Leviton company)

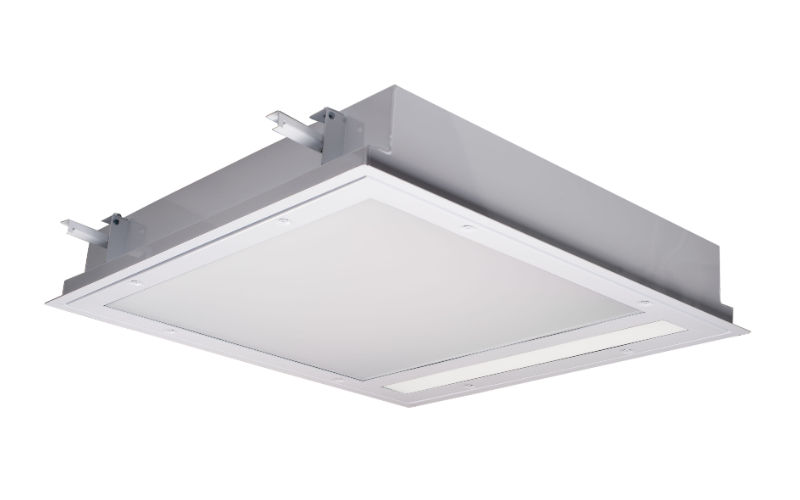

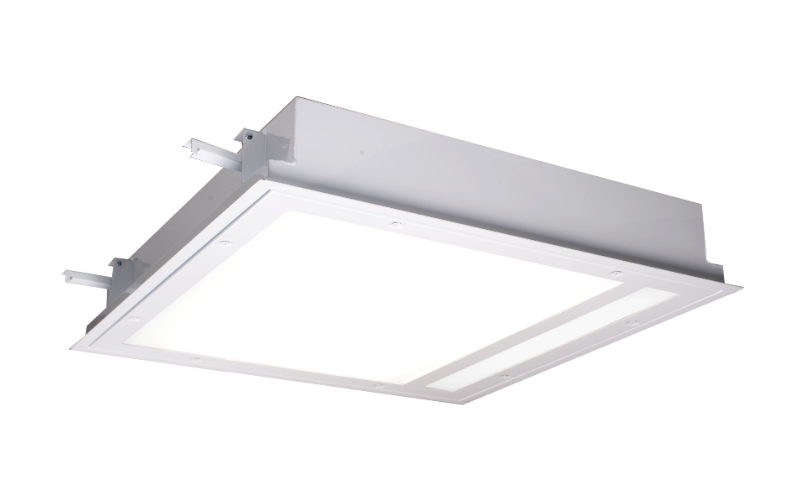

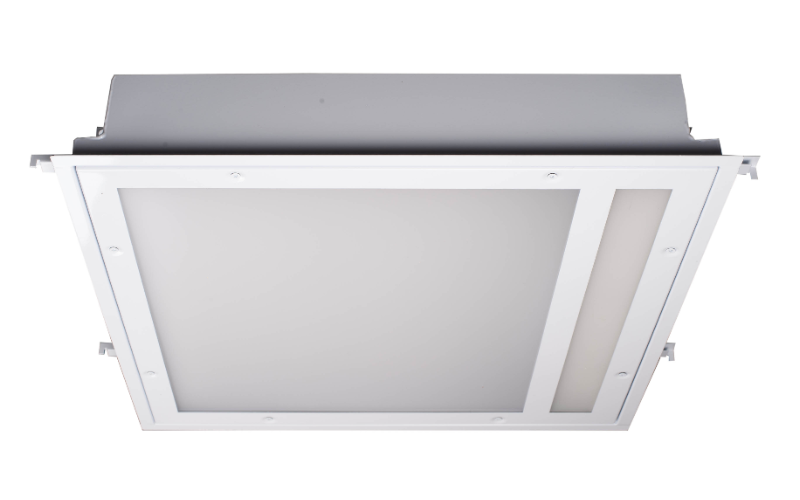

MSUi-DFX. LED Recessed Surgical Luminaire with 365DisInFx technology & WavePort.
Configure
Add to project




RESOURCES
DESCRIPTION
The MSUi-DFX series provides a UVA source from an inset door luminaire to provide a simple and effective way of adding surface disinfection to surgical suites. It also has advanced cleanroom features for supplemental lighting of the surgical/operating room. It offers symmetric or asymmetric distributions when located above the surgical table perimeter. It is certified dust-tight and water resistant to IP65 for frequent rigorous cleaning practices. MSUi is Mil-Std-461G certified and designed for recessed mounting in surgical ceiling systems and grid and flanged installations. The MSU-DFX featuring Leviton’s WavePort™ technology harnesses the power of 365DisInFx to kill bacteria while delivering superior white light.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft4 Ft
- Light SourceLEDUV
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)27.5 W45 W43.1 W59.2 W55 W84.3 W80.6 W98.3 W149.4 Wcustom
- Lumens(Approx)3527 Lm5544 Lm5589 Lm7083 Lm8963 Lm7055 Lm10038 Lm12012 Lm18076 Lmcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULNSF
- EnvironmentClean RoomAntimicrobial LightIP65SurgicalHealthcare General
- Mounting TypeCeiling Recessed
- HousingIC
- Housing Depth4 1/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
