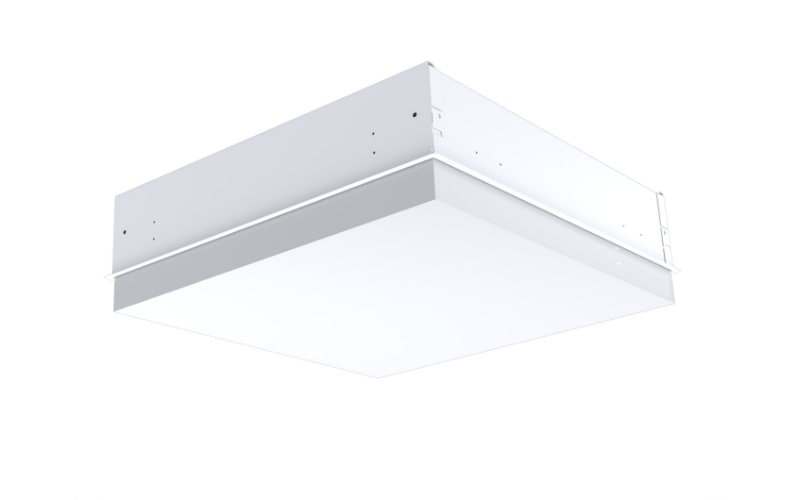

QDAR. QUADRA Recessed Architectural Drop Lens LED.
Configure
Add to project
RESOURCES
DESCRIPTION

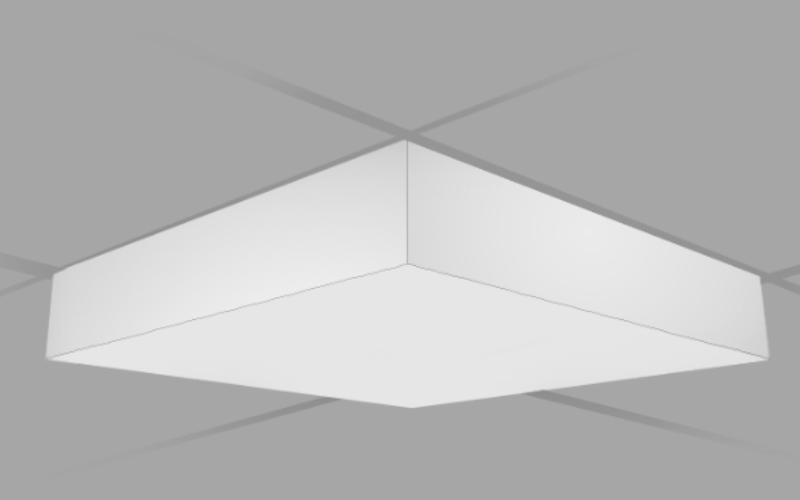

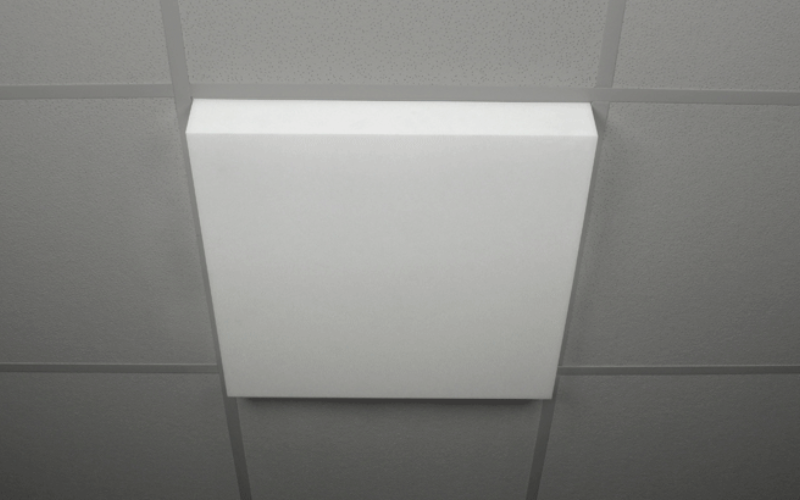

The Quadra features fully luminous diffusers which deliver uniform light in flush, 1, 2, 3 or 4” drop lens options. Its three-dimensional design and clean aesthetic appeal make it ideal for office lounge areas, public spaces, lobbies and retail applications. Quadra the perfect way to add ambient lighting and interest to any ceiling without shadows and pixelation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 Ft4 FtL: 2 Ft4 FtH: 1"2"3"4"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80
- Watt(Approx)19 W27 W36 W70 W106 W142 W
- Lumens(Approx)2044 Lm3058 Lm4055 Lm8116 Lm12141 Lm16102 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkCasambi
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
