SLSV. Selest Concave - XL Visioneering 4x4 Architectural Suspended Luminaire with a Concave Lens.
Configure
Add to project



RESOURCES
DESCRIPTION

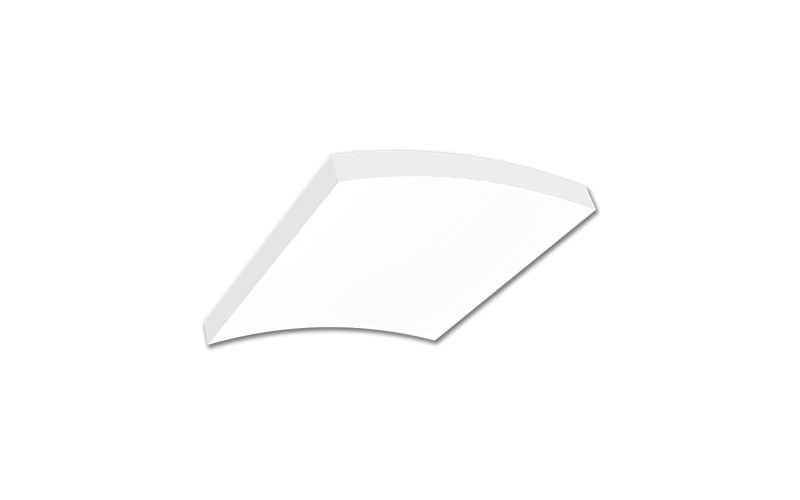

The Selest Concave-XL 4x4 suspended light fixture is a specification-grade solution designed to elevate modern interiors with a distinctive concave lens and fully luminous aperture. Engineered for architectural environments, this fixture combines aesthetic appeal with advanced performance, making it ideal for spaces that demand both style and efficiency. Its large format 4x4 configuration ensures uniform illumination while maintaining a sleek, frameless design that complements contemporary interiors.
Perfect for commercial, retail, hospitality, educational, and healthcare settings, the Selest Concave-XL offers more than just lighting, it creates an atmosphere. The concave lens delivers soft, diffused light that enhances visual comfort, while the architectural LED lighting system ensures energy efficiency and long-lasting reliability. With tunable white options ranging from 2700K to 6500K, designers can achieve precise color temperatures to suit any mood or application. The fixture supports continuous row mounting, enabling seamless integration with other Selest luminaires for a harmonious wave-like aesthetic across large spaces.
Built for performance, the Selest Concave-XL features high-efficiency LEDs paired with advanced drivers, delivering up to 16,000 lumens with exceptional efficacy. Rated for L80 performance beyond 60,000 hours, this luminaire minimizes maintenance costs while maximizing operational life. Standard low-voltage dimming (0–10V, 1%) and optional DALI or Dim-to-Dark (0.1%) controls provide flexibility for dynamic lighting scenarios. Emergency battery pack options and compatibility with wireless control systems further enhance its adaptability for modern building requirements.
Construction quality is uncompromised: a die-formed, cold-rolled steel housing ensures durability, while a frosted, curved diffuser creates a smooth, glare-free output. The adjustable aircraft cable mounting system simplifies installation, offering precise alignment for suspended applications. Finished with a five-stage pretreatment and polyester powder coating, the Selest Concave-XL is as robust as it is elegant. ETL listing, RoHS compliance, and suitability for dry and damp locations underscore its reliability and safety credentials.
Whether you’re designing a high-end retail space or a collaborative office environment, Selest Concave-XL delivers a perfect balance of form and function. Its combination of large format design, concave lens aesthetics, and advanced LED technology makes it a standout choice for architectural lighting projects.
The Selest Concave-XL redefines suspended light fixtures with its bold design and superior performance. From energy efficiency to customizable lighting options, it offers everything needed for modern architectural spaces. Explore how this luminaire can transform your environment with elegance and precision.
Perfect for commercial, retail, hospitality, educational, and healthcare settings, the Selest Concave-XL offers more than just lighting, it creates an atmosphere. The concave lens delivers soft, diffused light that enhances visual comfort, while the architectural LED lighting system ensures energy efficiency and long-lasting reliability. With tunable white options ranging from 2700K to 6500K, designers can achieve precise color temperatures to suit any mood or application. The fixture supports continuous row mounting, enabling seamless integration with other Selest luminaires for a harmonious wave-like aesthetic across large spaces.
Built for performance, the Selest Concave-XL features high-efficiency LEDs paired with advanced drivers, delivering up to 16,000 lumens with exceptional efficacy. Rated for L80 performance beyond 60,000 hours, this luminaire minimizes maintenance costs while maximizing operational life. Standard low-voltage dimming (0–10V, 1%) and optional DALI or Dim-to-Dark (0.1%) controls provide flexibility for dynamic lighting scenarios. Emergency battery pack options and compatibility with wireless control systems further enhance its adaptability for modern building requirements.
Construction quality is uncompromised: a die-formed, cold-rolled steel housing ensures durability, while a frosted, curved diffuser creates a smooth, glare-free output. The adjustable aircraft cable mounting system simplifies installation, offering precise alignment for suspended applications. Finished with a five-stage pretreatment and polyester powder coating, the Selest Concave-XL is as robust as it is elegant. ETL listing, RoHS compliance, and suitability for dry and damp locations underscore its reliability and safety credentials.
Whether you’re designing a high-end retail space or a collaborative office environment, Selest Concave-XL delivers a perfect balance of form and function. Its combination of large format design, concave lens aesthetics, and advanced LED technology makes it a standout choice for architectural lighting projects.
The Selest Concave-XL redefines suspended light fixtures with its bold design and superior performance. From energy efficiency to customizable lighting options, it offers everything needed for modern architectural spaces. Explore how this luminaire can transform your environment with elegance and precision.
- Distinctive concave lens with fully luminous aperture for a sleek, frameless aesthetic.
- Large format 4x4 configuration delivers uniform illumination across expansive spaces.
- Advanced LED technology ensures up to 16,000 lumens and L80 performance beyond 60,000 hours.
- Flexible controls including 0–10V dimming, DALI, Dim-to-Dark, and tunable white (2700K–6500K).
- Durable construction with die-formed steel housing, frosted diffuser, and ETL-listed safety compliance.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 FtL: 4 FtH: 7"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80
- Watt(Approx)66.4 W83.7 W102.2 W120.4 W138.8 Wcustom
- Lumens(Approx)8030 Lm10012 Lm12084 Lm14084 Lm16067 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworkWireless Dimming
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampHealthcare General
- Mounting TypePendant
- Housing
- Housing Depth
