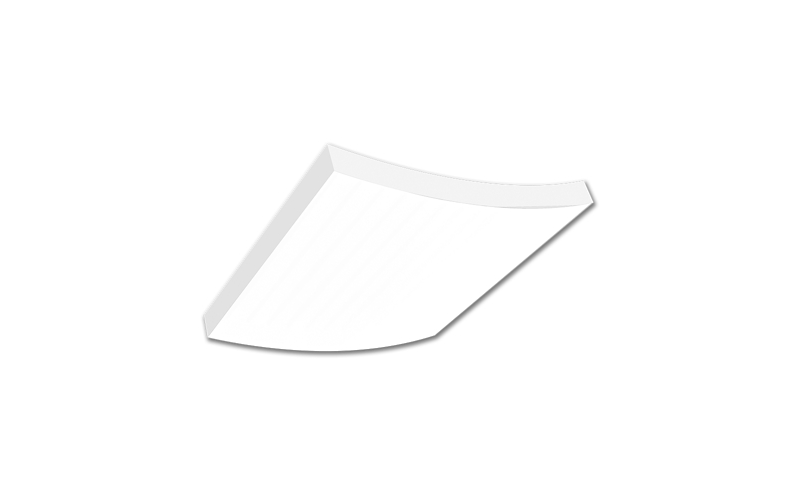

SLSX. Selest Convex - XL Visioneering 4x4 Architectural Suspended Luminaire with a Convex Lens.
Configure
Add to project



RESOURCES
DESCRIPTION
The Selest Convex-XL 4x4 suspended light fixture is a specification-grade solution designed for modern architectural spaces that demand both style and performance. Featuring a distinctive convex lens and a fully luminous aperture, this fixture delivers uniform illumination while enhancing the visual appeal of any environment. Its 4x4 large format makes it ideal for creating impactful lighting designs in commercial, retail, hospitality, and educational settings. Engineered for seamless integration, the Selest Convex-XL combines aesthetics with advanced functionality, making it a standout choice for professionals seeking high-quality architectural LED lighting.

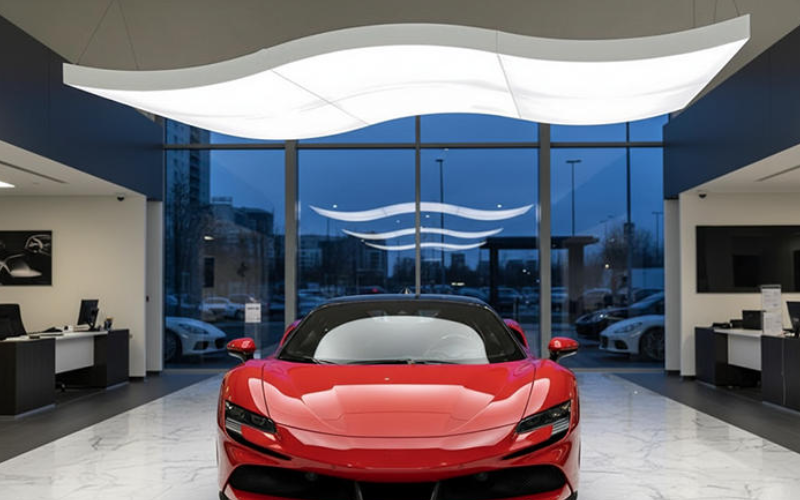

Built for versatility, the Selest Convex-XL offers a range of features that elevate its performance and adaptability. The frosted curved diffuser ensures smooth light distribution, reducing glare and creating a comfortable atmosphere. With standard low-voltage dimming (0–10V, 1%) and optional DALI or Dim-to-Dark capabilities, users can fine-tune brightness to suit any application. For projects requiring dynamic lighting, the tunable white option (2700K–6500K) provides flexibility to adjust color temperature, supporting environments from warm hospitality spaces to bright, task-oriented areas. Continuous row mounting compatibility allows designers to create wave-like patterns by pairing multiple units, maintaining a harmonious aesthetic across large installations. Constructed from die-formed, cold-rolled steel and finished with a five-stage pretreatment polyester powder coating, this fixture ensures durability and long-term reliability.
Performance is at the core of the Selest Convex-XL. Powered by long-life LEDs and high-efficiency drivers, it delivers up to 16,000 lumens with exceptional efficacy, achieving over 125 lumens per watt. Rated for L80 performance beyond 60,000 hours, this luminaire minimizes maintenance costs while maximizing energy savings. Emergency lighting options, including battery packs and cold-weather configurations, provide added security for critical applications. ETL listing, RoHS compliance, and suitability for dry and damp locations underscore its commitment to safety and sustainability. Whether installed in healthcare facilities, retail environments, or corporate offices, the Selest Convex-XL offers a perfect balance of form and function, making it an essential component of any architectural LED lighting plan.
Incorporating advanced design and robust engineering, the Selest Convex-XL transforms ordinary spaces into extraordinary experiences. Its combination of a large format 4x4 profile, convex lens, and suspended mounting system creates a striking visual statement while delivering superior illumination. For designers and facility managers seeking a solution that blends elegance, efficiency, and adaptability, this fixture stands as a benchmark in architectural lighting innovation.
Built for versatility, the Selest Convex-XL offers a range of features that elevate its performance and adaptability. The frosted curved diffuser ensures smooth light distribution, reducing glare and creating a comfortable atmosphere. With standard low-voltage dimming (0–10V, 1%) and optional DALI or Dim-to-Dark capabilities, users can fine-tune brightness to suit any application. For projects requiring dynamic lighting, the tunable white option (2700K–6500K) provides flexibility to adjust color temperature, supporting environments from warm hospitality spaces to bright, task-oriented areas. Continuous row mounting compatibility allows designers to create wave-like patterns by pairing multiple units, maintaining a harmonious aesthetic across large installations. Constructed from die-formed, cold-rolled steel and finished with a five-stage pretreatment polyester powder coating, this fixture ensures durability and long-term reliability.
Performance is at the core of the Selest Convex-XL. Powered by long-life LEDs and high-efficiency drivers, it delivers up to 16,000 lumens with exceptional efficacy, achieving over 125 lumens per watt. Rated for L80 performance beyond 60,000 hours, this luminaire minimizes maintenance costs while maximizing energy savings. Emergency lighting options, including battery packs and cold-weather configurations, provide added security for critical applications. ETL listing, RoHS compliance, and suitability for dry and damp locations underscore its commitment to safety and sustainability. Whether installed in healthcare facilities, retail environments, or corporate offices, the Selest Convex-XL offers a perfect balance of form and function, making it an essential component of any architectural LED lighting plan.
Incorporating advanced design and robust engineering, the Selest Convex-XL transforms ordinary spaces into extraordinary experiences. Its combination of a large format 4x4 profile, convex lens, and suspended mounting system creates a striking visual statement while delivering superior illumination. For designers and facility managers seeking a solution that blends elegance, efficiency, and adaptability, this fixture stands as a benchmark in architectural lighting innovation.
- Distinctive convex lens with fully luminous aperture for uniform, glare-free illumination.
- Large format 4x4 suspended light fixture ideal for commercial, retail, and hospitality spaces.
- Advanced dimming options including 0–10V, DALI, and Dim-to-Dark for precise control.
- Tunable white capability (2700K–6500K) for dynamic color temperature adjustment.
- High-performance LEDs delivering up to 16,000 lumens with L80 life beyond 60,000 hours.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 FtL: 4 FtH: 7"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80
- Watt(Approx)61.3 W77.1 W93.6 W110.8 W128.1 Wcustom
- Lumens(Approx)8033 Lm10007 Lm12022 Lm14078 Lm16117 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworkWireless Dimming
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampHealthcare General
- Mounting TypePendant
- Housing
- Housing Depth
