APX-1. Apex.
Configure
Add to project
RESOURCES
DESCRIPTION

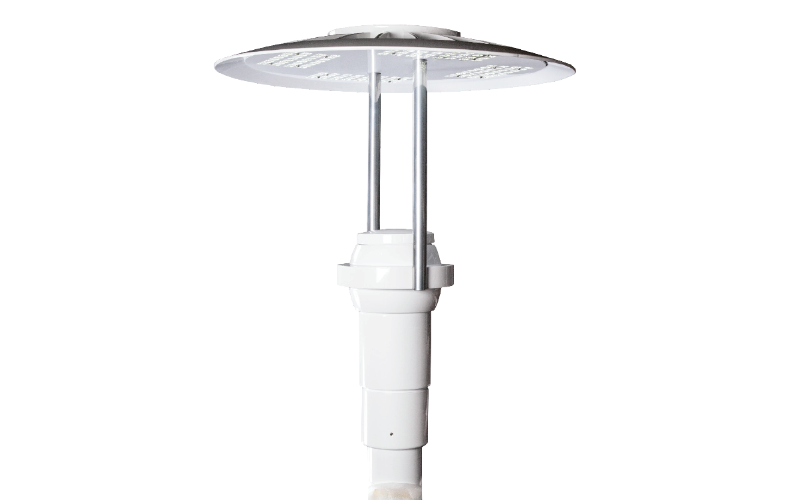

The Apex(TM) integrates LED technology with a popular contemporary fixture design. Apex(TM) is a scalable LED luminaire with four different lumen packages. Designers can dial right in on the desired light level and wattage for any application. The high performance of the Apex allows for great light levels AND great aesthetics in one fixture package.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 26"L: 26"H: 29"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70 75
- Watt(Approx)70 W107 W140 W212 W
- Lumens(Approx)9502 Lm13131 Lm18668 Lm26177 Lm
- OpticsDirectType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark Sky
- EnvironmentIP66Corrosion Resistant
- Mounting TypePole/Mast ArmPole/Post Top
- Housing
- Housing Depth
