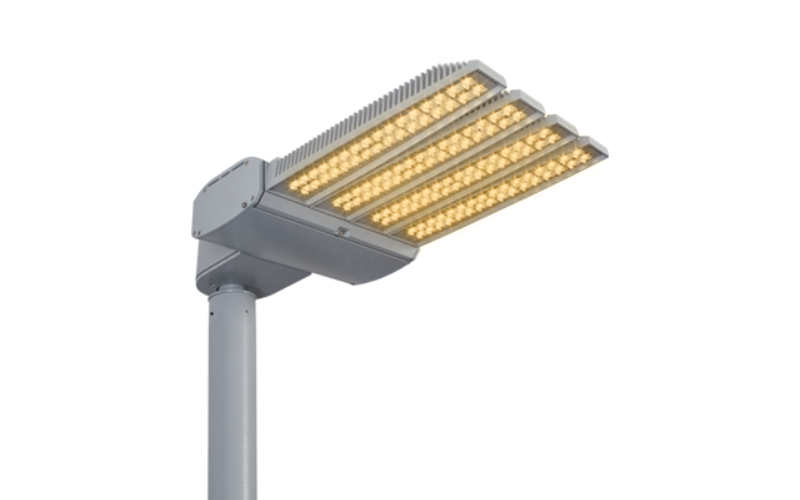

BLX-2. BOW LX II Turtle Safe.
Configure
Add to project
RESOURCES
DESCRIPTION
The BOW LX II Turtle Safe site lighting package for high light level LED applications. A dedicated heat sink for each LED array maximizes the thermal management characteristics of the BOW LX. An adjustable knuckle slip fits over a 2 3/8″ Tenon, and allows for up to 50 degrees of vertical adjustment in 10 degree increments from horizontal, as well as full side to side adjustment.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15"17"28"33"L: 36"34"H: 5"
- Light SourceLED
- CCT/ColorAmber (WildLife)
- CRI
- Watt(Approx)102 W157 W143 W211 W210 W321 W278 W430 W
- Lumens(Approx)3576 Lm5050 Lm4737 Lm6793 Lm7330 Lm10535 Lm9925 Lm14277 Lm
- OpticsDirectFloodType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark Sky
- EnvironmentIP65
- Mounting TypePole/Mast ArmPole/Post TopWall SurfaceWall Arm/CantileverTenon Adapter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBLX-2-TS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
