BSX-II. BOW ARRAY ROADWAY.
Configure
Add to project
RESOURCES
DESCRIPTION

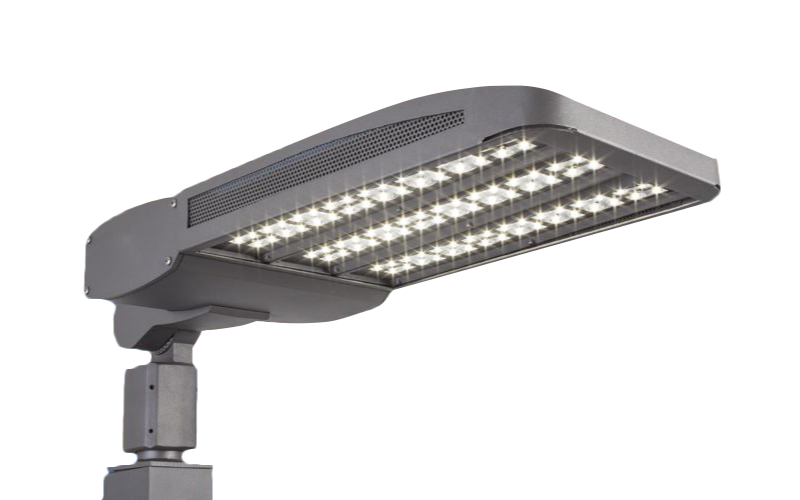

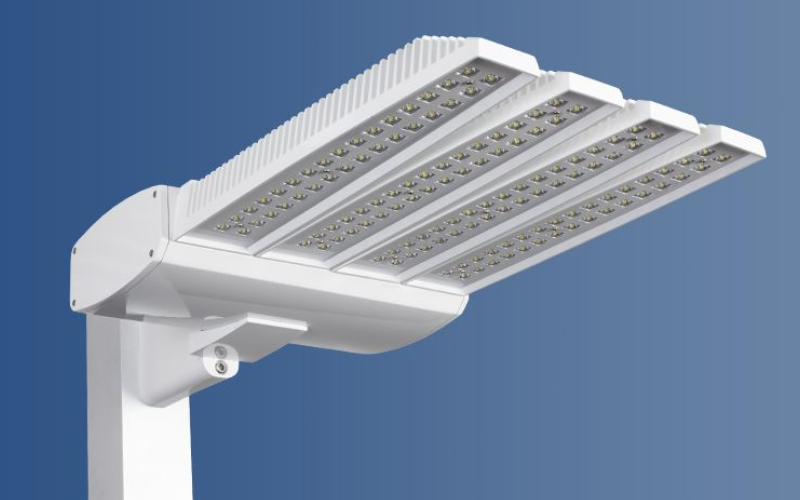

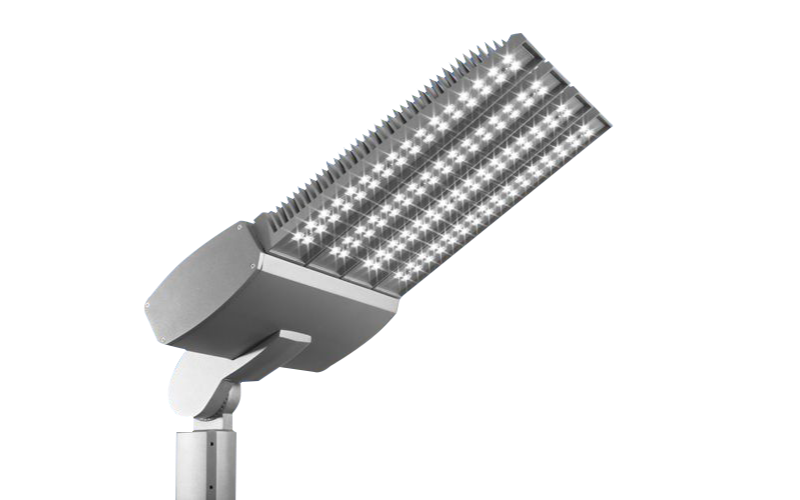

The BOW Roadway Family creates up to a 147,000+ lumen site lighting package for high light level LED applications. A dedicated heat sink for each LED array maximizes the thermal management characteristics of the BOW Roadway Family. Multiple mounting options including an adjustable knuckle slip fits over a 2 3/8″ tenon, and allows for up to 90 degrees of vertical adjustment in 10 degree increments from horizontal, as well as full side to side adjustment. A Bolt-On Arm that utilizes a 2 piece cleat system for easy installation. A Mast Arm Fitter that fits over a 2 3/8″ tenon. A Post Top Mount that fits over a 2 3/8″ tenon and is adjustable up to 45° and a Trunnion Mount that is adjustable up to 45°.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 15"17"L: 27"28"29"25"H: 5"9"8"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70
- Watt(Approx)33 W68 W102 W152 W172 W230 W263 W
- Lumens(Approx)5275 Lm10013 Lm14629 Lm22271 Lm24818 Lm32668 Lm36776 Lm
- OpticsDirectType IType IIType IIIType IVType V
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyDLC*
- EnvironmentIP65
- Mounting TypePole/Mast ArmPole/Post TopWall Arm/CantileverTrunnionKnuckleTenon Adapter
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBSX-2-A-R
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
