Visionaire Lighting

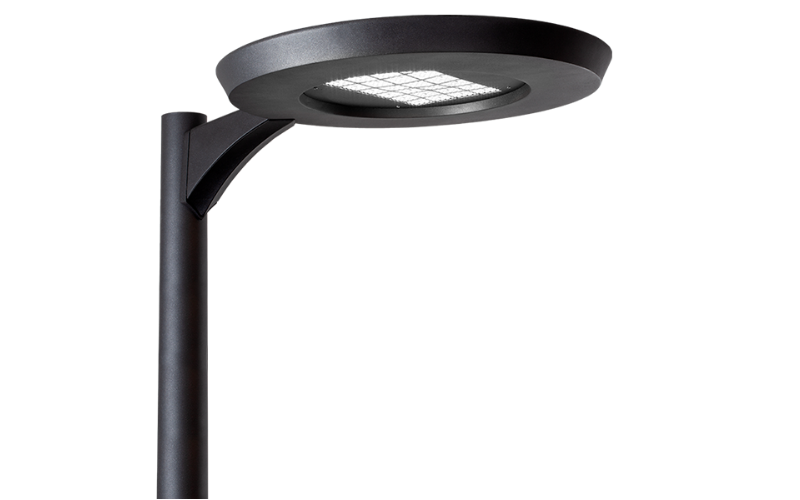

LSO-L. LUSSO ARRAY Large Arm Mount.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lusso Collection powered by ARRAY from Visionaire Lighting can elegantly compliment the daytime architecture of your space while providing nighttime illumination that is up to the task and equally as elegant. The collection consists of a wall sconce, bollard, single or twin arm post top and a beautiful pole mount. Available in two housings sizes and lumen packages up to 55,000 lumens thanks to our performance ARRAY LED platform. Scale and design creativity has no limits for any application
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 31"L: 31"H: 10"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70
- Watt(Approx)205 W232 W272 W309 W332 W367 W397 W
- Lumens(Approx)27930 Lm31149 Lm35775 Lm42387 Lm46095 Lm49312 Lm52834 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyDLC*
- EnvironmentIP65Corrosion Resistant
- Mounting TypePole/Mast ArmWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLSO-L-AM
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
