PGR-1 LED.
Configure
Add to project
RESOURCES
DESCRIPTION

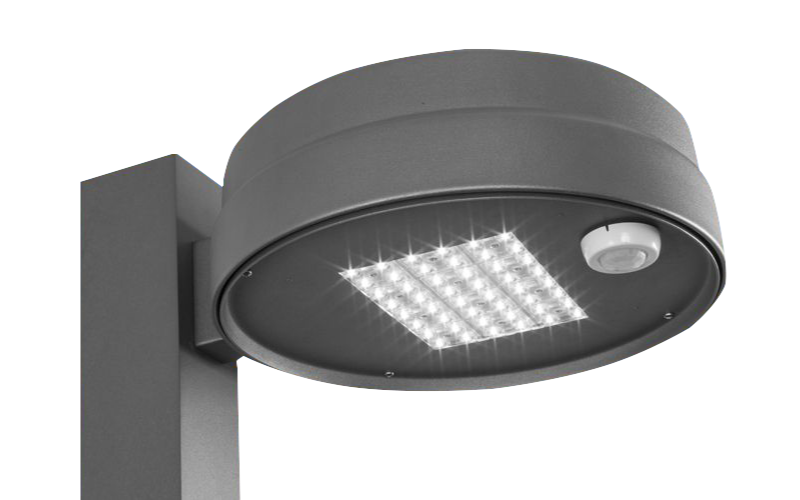

The PGR-1 LED luminaire from Visionaire combines contemporary design with new LED technology while maintaining a traditional fixture image. The LEDs Performance and Life are maximized by the unique integral aluminum heat sink. It is an ideal replacement for the high-maintenance fluorescent or HID fixtures of yesterday.
The LED housing is spun aluminum with internal heat sink for maximum heat dissipation with either 16, 32 or 48 LEDs. The aluminum driver compartment allows the driver to operate cooler for long life.
Eight optical distribution patterns are available. Choose between 3000, 4000 or 5000 Kelvin temperature of the LED’s.
A durable polyester powder coat finish is guaranteed for five years and is available in standard or custom colors.
The PGR-1 LED series is an exceptional choice for paths and roadways, pedestrian walkways, shopping centers, etc.
The LED housing is spun aluminum with internal heat sink for maximum heat dissipation with either 16, 32 or 48 LEDs. The aluminum driver compartment allows the driver to operate cooler for long life.
Eight optical distribution patterns are available. Choose between 3000, 4000 or 5000 Kelvin temperature of the LED’s.
A durable polyester powder coat finish is guaranteed for five years and is available in standard or custom colors.
The PGR-1 LED series is an exceptional choice for paths and roadways, pedestrian walkways, shopping centers, etc.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16"L: 16"H: 5"
- Light SourceLED
- CCT/Color3000K4000K5000K
- CRI70
- Watt(Approx)18 W26 W37 W35 W52 W53 W71 W78 W107 W
- Lumens(Approx)2397 Lm3451 Lm4388 Lm5072 Lm7263 Lm7603 Lm9182 Lm10192 Lm13690 Lm
- OpticsDirectType IType IIType IIIType IVType V
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyDLC*
- EnvironmentIP65
- Mounting TypePole/Mast ArmPole/Post TopWall Arm/CantileverKnuckleTenon Adapter
- Housing
- Housing Depth
