Visionaire Lighting

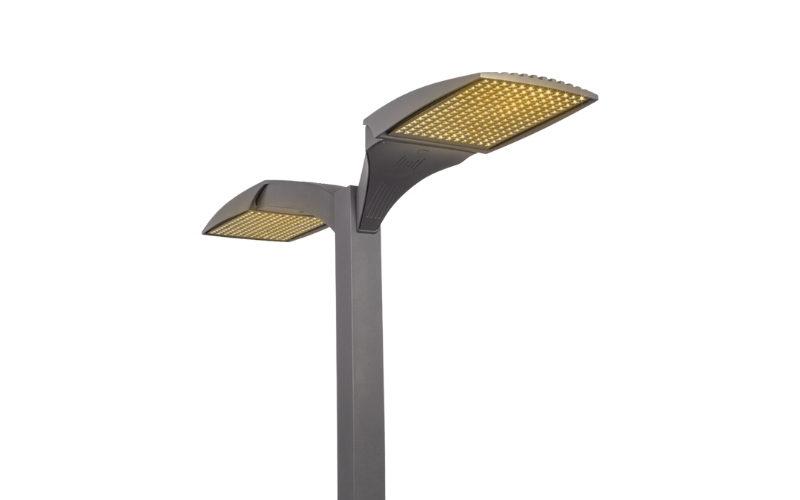

VLX-1 Turtle Safe LED.
Configure
Add to project
RESOURCES
DESCRIPTION
The new VLX LED Series offers clean, functional styling that is defined by its sleek low profile design and rugged construction. It combines LED performance and advanced LED thermal management technology and provides outdoor lighting that is both energy ef cient and aesthetically pleasing.
The LED’s performance and the driver’s life are maximized by enclosing them in two separate die cast aluminum housings. Easy tool-less access for mounting and maintenance.
The LED light assemblies come with 96 to 192 LEDs. Seven optical distribution patterns are available.
A durable polyester powder coat finish is guaranteed for five years; and is available in standard or custom colors.
The VLX LED series is an exceptional choice for commercial parking lots, office complexes, architectural projects, and other general lighting projects.
The LED’s performance and the driver’s life are maximized by enclosing them in two separate die cast aluminum housings. Easy tool-less access for mounting and maintenance.
The LED light assemblies come with 96 to 192 LEDs. Seven optical distribution patterns are available.
A durable polyester powder coat finish is guaranteed for five years; and is available in standard or custom colors.
The VLX LED series is an exceptional choice for commercial parking lots, office complexes, architectural projects, and other general lighting projects.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.59"L: 36.61"H: 4.39"
- Light SourceLED
- CCT/ColorAmber (WildLife)
- CRI
- Watt(Approx)103 W159 W136 W215 W171 W206 W266 W317 W
- Lumens(Approx)3481 Lm4936 Lm4597 Lm6863 Lm5779 Lm6962 Lm8368 Lm9872 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral Emergency
- Lumen Maintenance90000 h
- CertificatesETLDark Sky
- EnvironmentIP65
- Mounting TypePole/Mast ArmWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVLX-1-TS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
