Visionaire Lighting
VSC-II – V-Sconce Turtle Safe LED.
Configure
Add to project
RESOURCES
DESCRIPTION

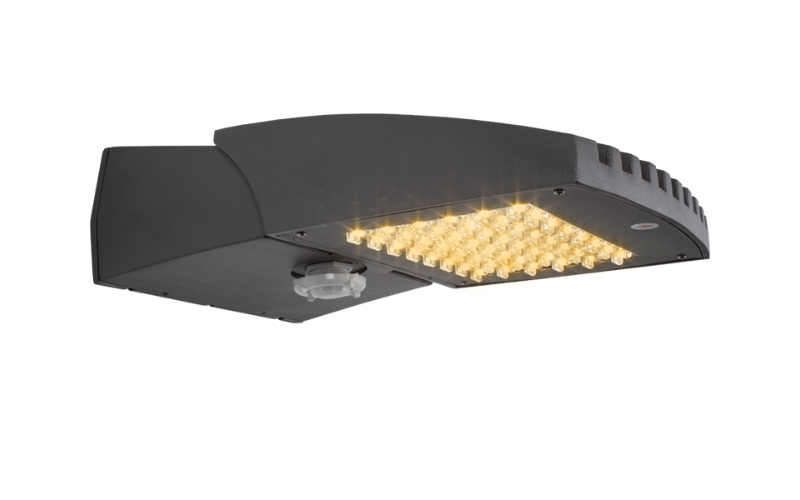

V-Sconce – Turtle Safe is part of our V-Collection is a high performance architectural LED luminaire to be used in outdoor lighting applications. Sleek design takes advantage of the low profile LED lamp technology. Superior thermal management allows for maximum LPW output. Cast aluminum construction provides years of reliable operation. Three different IES light distribution patterns make the V-Sconce ideal for any site.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.89"L: 10.79"H: 4.84"
- Light SourceLED
- CCT/ColorAmber (WildLife)
- CRI70
- Watt(Approx)18 W26 W37 W52 W56 W
- Lumens(Approx)570 Lm765 Lm1130 Lm1540 Lm1722 Lm2310 Lm
- OpticsDirectFloodType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V480V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesUL/CULDark SkyDLC*
- EnvironmentIP65
- Mounting TypeWall SurfaceConduit Box
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVSC-2-TS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
