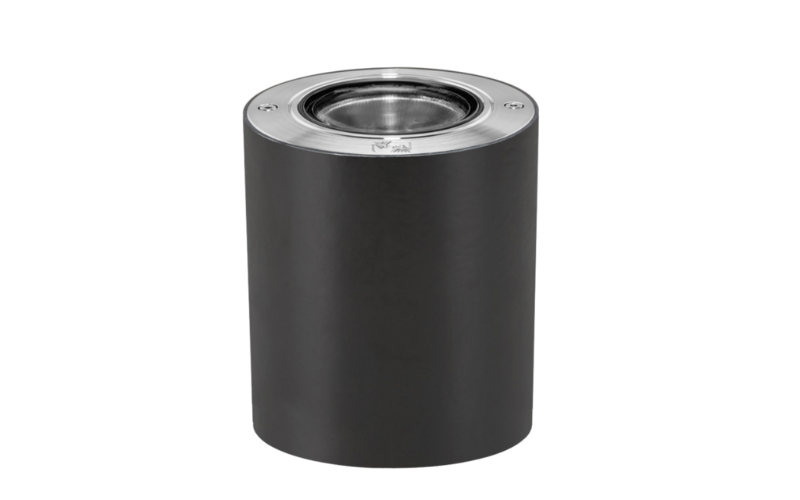

1182SE-SS. STAINLESS STEEL LED SEMI-RECESSED IN-GRADE.
Configure
Add to project


RESOURCES
DESCRIPTION
The 1182SE-SS In-Grade fixture, utilizing integrated Chip-On-Board (COB) LED technology and precision optics, achieves high-performance lighting with controlled cutoff and various spread options. This 5.5-inch diameter SE Series fixture, encased in a 12-inch heavy-walled exterior sleeve, features a machined and passivated stainless steel door, combining durability with aesthetic appeal. Ideal for in-grade applications needing elevation above plants, bushes, or for tree lighting, it offers a sleek and robust alternative to floodlights vulnerable to pedestrian traffic. Its patented magnetic hot aiming system allows for internal tilt optics adjustment without opening the fixture. A piston gasket seals the lamping module to the Rough-In-Section (RIS) for a watertight fit. Providing over 1300 delivered lumens in color temperatures from 2700°K to 5000°K, the 1182SE-SS is IP68 rated, signifying excellent environmental resilience.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 7/16"L: 5 7/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80
- Watt(Approx)6.4 W9.8-10 W11.5-11.7 W13.8-14 W
- Lumens(Approx)287-570 Lm511-908 Lm588-1084 Lm646-1300 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USA
- EnvironmentIP68
- Mounting TypeIn-Grade
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
