Whitegoods (Inter-Lux)

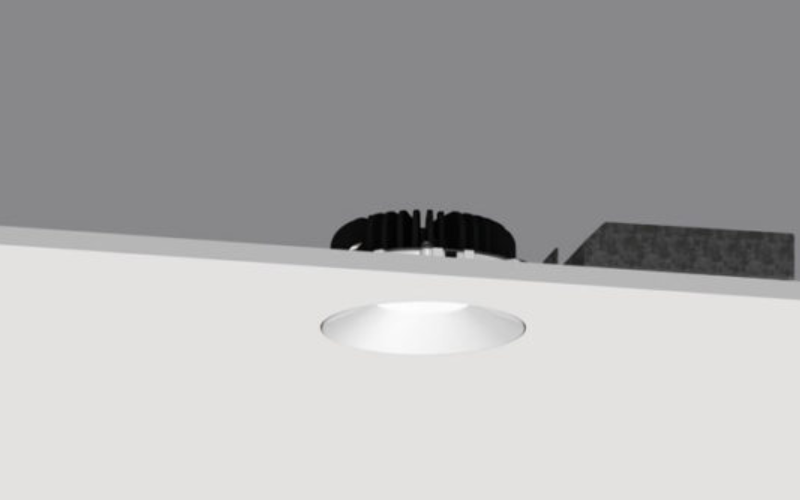

WG-100RPTD. 4 In. ProTools D Downlight Round Recessed Cone.
Configure
Add to project
RESOURCES
DESCRIPTION
- 4″ round aperture downlight with wide distribution ambient lighting.
- 0.7″ regressed, evenly illuminated, highly efficient Satin Opal Diffuser providing good glare control.
- High efficiency, high transmission diffuser.
- Beam Angle: 110°
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Modular interchangeability throughout the entire ProTools range of products.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (700 to 1516 lm).
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"5.2"L: 4"5.2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)11 W15 W22.5 W
- Lumens(Approx)834 Lm1188 Lm1638 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimLutron Hi-lume Premier Eco (PEQ0)eldoLED ECO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingNew ConstructionICChicago Plenum
- Housing Depth1.9 ''
