Whitegoods (Inter-Lux)

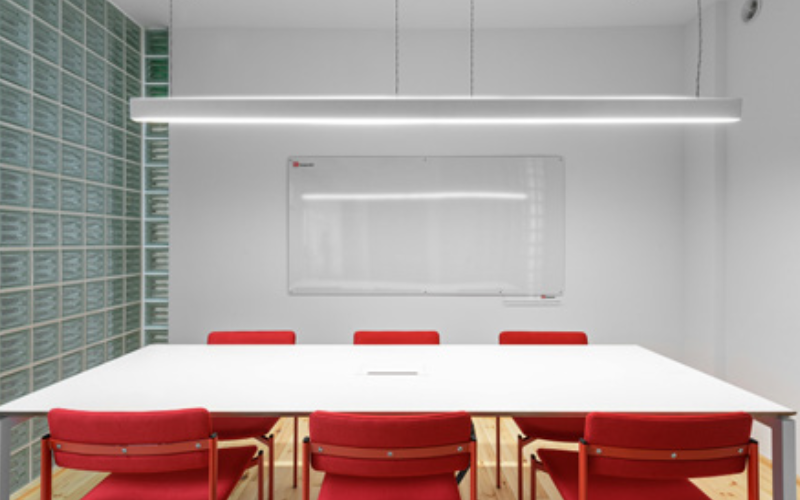

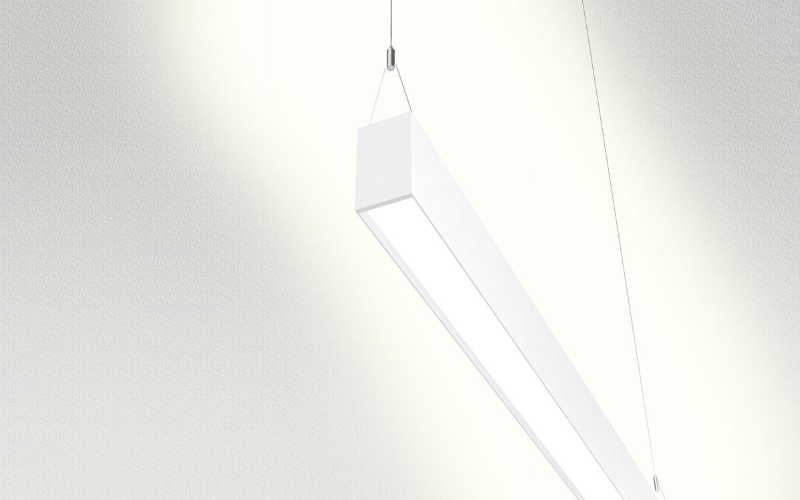

WG-60PTLDI. ProTools 60 Linear Direct/Indirect Wall Wash Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION
- 2.4″ aperture, suspended bi-directional luminaire.
- Standard and tailored run lengths, including corner configurations.
- Separately controllable up and down lighting with distribution options.
- Extreme brightness control and theelimination of disturbing glare.
- Modularity of insert modules for ultimate flexibility.Consistent LED technology throughout the Whitegoods product range.
- Flicker-free full range dimming with standard driver (Eldoled).
- Efficacy up to 87 [Direct] and 156 (A) | 163 (W) [Indirect] lumens per watt (delivered) @ 3000K, see photometry page for details.
- L70 (TM21 Projected 85ºC) Static White / Tunable White = 50,000 hours.
- ETL and ETL-C for dry and damp location.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 24"48"96"Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI90
- Watt(Approx)3 W/Ft6 W/Ft
- Lumens(Approx)
- OpticsDirect/IndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%DALILutron EcoSystemEldoLED 0-10V/DALI
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWG-60PTLDI
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
