Whitegoods (Inter-Lux)
WG-60PTLP-WL. ProTools 60 Linear Perimeter Recessed Wet Location.
 Configure
 Add to project

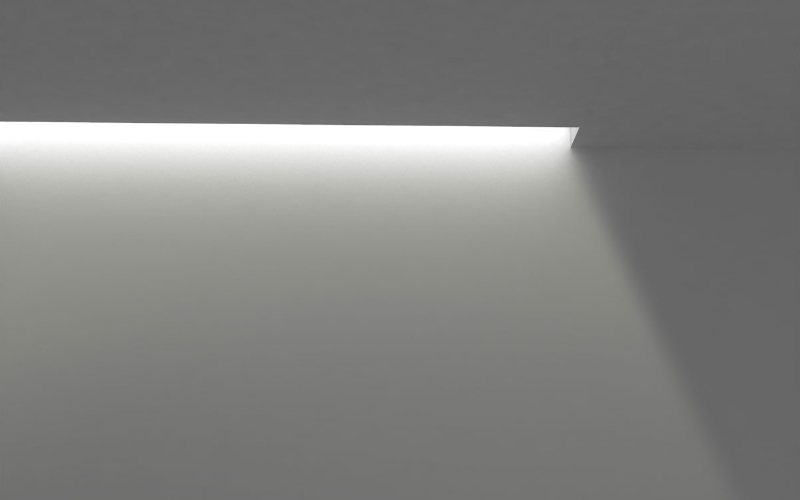

Whitegoods. WG-60PTLP-WL. ProTools 60 Linear Perimeter Recessed Wet Location.
Whitegoods. WG-60PTLP-WL. ProTools 60 Linear Perimeter Recessed Wet Location.
Whitegoods. WG-60PTLP-WL. ProTools 60 Linear Perimeter Recessed Wet Location.
RESOURCES
DESCRIPTION
  • 2.4″ aperture, integrated solution that is compatible with all ceiling types.
  • Standard and tailored run lengths, including corners.
  • Evenly illuminated perimeter lighting system with recessed optics minimizes brightness.
  • Consistent LED technology throughout the Whitegoods product range.
  • Easy to install housing allows the wall to continue above the finished ceiling.
  • Flexible design allows exact wall-to-wall dimensions.
  • Flicker-free full range dimming with standard driver (eldoLED).
  • Efficacy up to 118 lumens per watt (delivered) @ 3000K, see photometry page for details.
  • L70 (TM21 Projected 85ºC) Static White (2700K-4000K) = 60,000 hours.
  • ETL Wet Location for Outdoor applications.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.5"
    L: 24"48"96"Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    6 W/Ft
  • Lumens(Approx)
    708 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/TrailingLutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)eldoLED SOLO DMXEldoLED 0-10V/DALI
  • Controls/Network
    Lutron®Casambi
  • Power/Voltage
    IntegralRemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    ETLMade in USABAA
  • Environment
    Wet
  • Mounting Type
    Ceiling RecessedT-Grid Ceiling
  • Housing
    New ConstructionChicago Plenum
  • Housing Depth
    4.3 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
