Whitegoods (Inter-Lux)

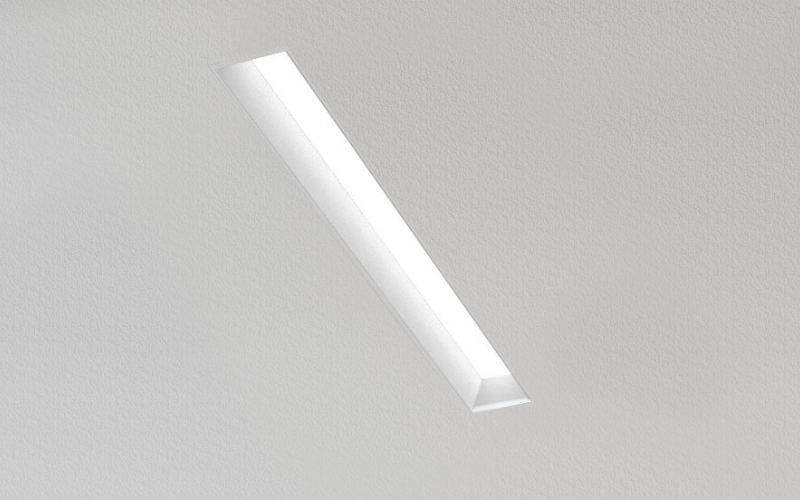

WG-60PTLWW. ProTools 60 Linear Wall Wash 6" / 12" Recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
- 2.4″ aperture, integrated solution that is compatible with all ceiling types.
- Standard and tailored run lengths, including corners.
- Wash to 30′ wall height.
- Modularity of insert modules for ultimate design flexibility.
- Consistent LED technology throughout the Whitegoods product range.
- Evenly illuminate the wall from top to the bottom with smooth gradation.
- Flicker-free full range dimming with standard driver (Eldoled).
- Efficacy up to 87 lumens per watt (delivered) @ 3000K, see photometry page for details.
- L70 (TM21 Projected 85ºC) Static White / Tunable White = 50,000 hours.
- ETL and ETL-C for dry and damp location.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 6"12"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI90
- Watt(Approx)3 W/Ft6 W/Ft10 W/Ft15 W/Ft
- Lumens(Approx)261 Lm/Ft522 Lm/Ft870 Lm/Ft1305 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%DALILutron EcoSystemEldoLED 0-10V/DALI
- Controls/NetworkLutron®Casambi
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingNew ConstructionChicago Plenum
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWG-60PTLWW-R-6-12
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
