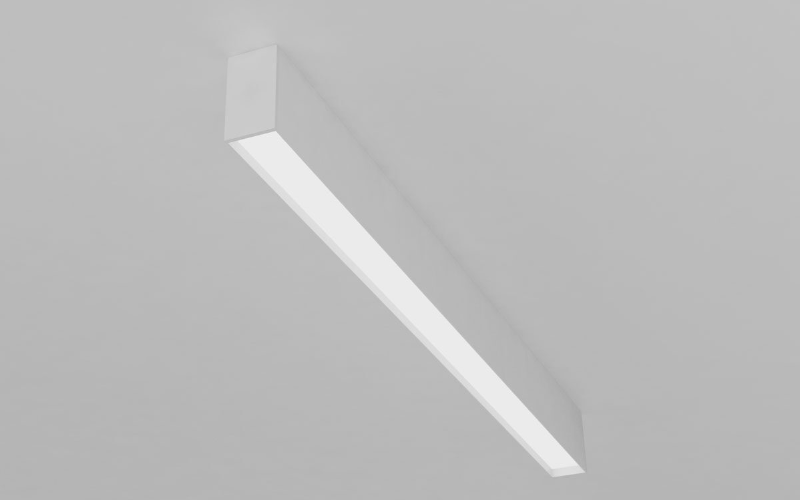

WG-60PTLWW. ProTools 60 Linear Wall Wash 6" / 12" Surface Mount.
Configure
Add to project
RESOURCES
DESCRIPTION
- 2.4″ aperture, integrated solution compatible with all ceiling types.
- Extreme brightness control and the elimination of disturbing glare.
- Modularity of insert modules for ultimate design flexibility.
- Consistent LED technology throughout the Whitegoods product range.
- Flicker-free full range dimming with standard driver (Eldoled).
- Efficacy up to 87 lumens per watt (delivered) @ 3000K, see photometry page for details.
- L70 (TM21 Projected 85ºC) Static White / Tunable White = 50,000 hours.
- ETL and ETL-C for dry and damp location.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 6"12"H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI90
- Watt(Approx)3 W/Ft6 W/Ft10 W/Ft15 W/Ft
- Lumens(Approx)261 Lm/Ft522 Lm/Ft870 Lm/Ft1305 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%DALILutron EcoSystemEldoLED 0-10V/DALI
- Controls/NetworkLutron®Casambi
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWG-60PTLWW-SM-6-12
