Whitegoods (Inter-Lux)

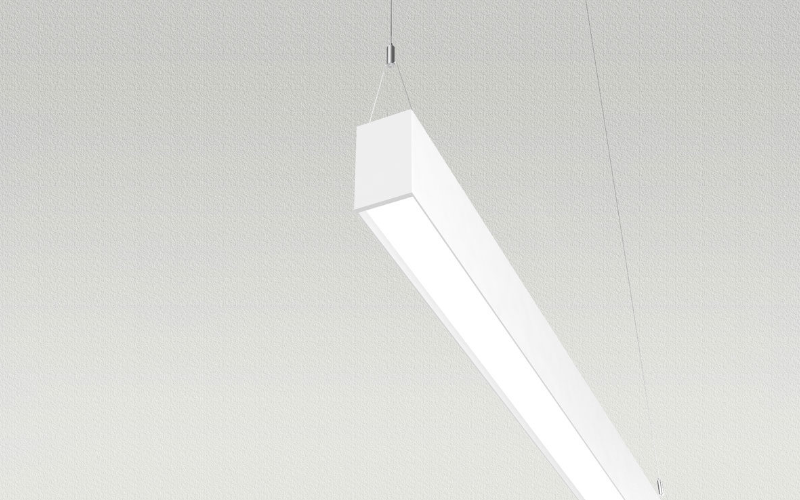

WG-60PTLWW. ProTools 60 Linear Wall Wash Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION
- 2.4″ aperture, suspended direct illumination luminaire.
- Standard and tailored run lengths, including corners.
- Extreme brightness control and eliminate glare.
- Modularity of insert modules for ultimate design flexibility.
- Consistent LED technology throughout the Whitegoods product range.
- Flexible design allows exact wall-to-wall dimensions.
- Flicker-free full range dimming with standard driver (Eldoled).
- Efficacy up to 87 lumens per watt (delivered) @ 3000K, see photometry page for details.
- L70 (TM21 Projected 85ºC) Static White / Tunable White = 50,000 hours.
- ETL and ETL-C for dry and damp location
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: 24"48"96"Run length (Ft)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI90
- Watt(Approx)3 W/Ft6 W/Ft10 W/Ft15 W/Ft
- Lumens(Approx)261 Lm/Ft522 Lm/Ft870 Lm/Ft1305 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%DALILutron EcoSystemEldoLED 0-10V/DALI
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
