Whitegoods (Inter-Lux)

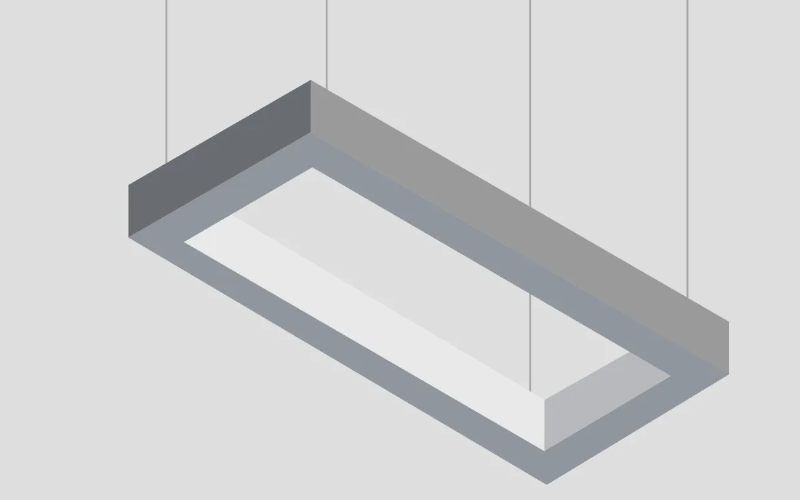

WG-CL-FR. City Linear Frame Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION
- Suspended fixture with indirect lighting for indoor use.
- Extruded aluminum housing, easily installed internal LED tray assembly. Remote driver. Field replaceable LED boards.
- Satin opal diffuser for high efficiency and soft edge beam without striations.
- Efficacy up to 92 lumens per watt (delivered).
- 90+ CRI, 3 Step MacAdam.
- L70 (TM21 Projected 85ºC) Static White 60,000 hours.
- ETL and ETL-C for dry and damp locations.
- Powdercoat painted.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"L: 18"36"H: 2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)3 W/Ft6 W/Ft10 W/Ft
- Lumens(Approx)276 Lm/Ft552 Lm/Ft920 Lm/Ft
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/TrailingLutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)EldoLED 0-10V/DALI
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWG-CL-FR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
