Whitegoods. WG-MBC. Mini Box Cove (Plaster Trim).

RESOURCES

DESCRIPTION

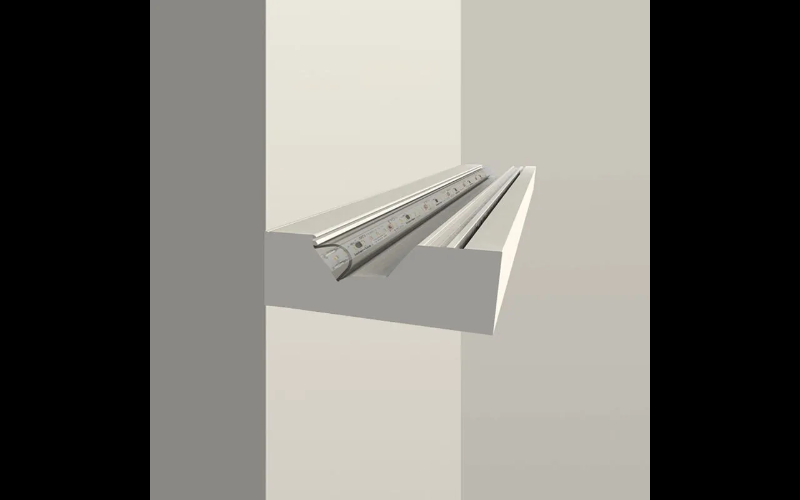

Continuous, plaster-in square-fronted linear cove system for clean, minimal effect with optimized distribution for maximum throw of light from a small luminaire.

Continuous surface wall mounted cove system that delivers an even wash of directed light to the ceiling above, and redirected light to softly illuminate the wall behind the fixture.
Light source positioned for optimum vertical spread of illumination.
Extruded aluminum housing, easily installed internal LED tray assembly. Remote driver. Field replaceable LED boards.
Efficacy up to 169 lumens per watt (delivered) @ 3000K, see photometry page for details.
90+ CRI, 3 Step MacAdam (Static White).
L70 (TM21 Projected 85ºC) Static White / Tunable White / RGBW 50,000 hours. Warm Dim 36,000 hours.
ETL and ETL-C for dry and damp locations.
Satin clear diffuser for high efficiency and soft edge beam without striations.
Lengths and angles factory cut to exact field dimensions. Standard and custom corners.
Powdercoat painted.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 3.7"
L: Run length (Ft)
H: 2.3"
Light Source
LED
CCT/Color
2700K3000K3000K Dim to Warm3500K4000KTunable WhiteRGBW
CRI
90
Watt^(Approx)
1.5 W/Ft3 W/Ft2.7 W/Ft6 W/Ft5.5 W/Ft10 W/Ft8 W/Ft7.6 W/Ft15 W/Ft
Lumens^(Approx)
204 Lm/Ft265 Lm/Ft424 Lm/Ft346 Lm/Ft520 Lm/Ft613 Lm/Ft978 Lm/Ft1505 Lm/Ft2241 Lm/Ft
Optics
DirectGeneral Diffused
Adjustable

Dimming
Dim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron Hi-lume Premier Eco (L3D0E)Lutron Hi-lume Eco (L3DAE)eldoLED SOLO DALIeldoLED SOLO 0-10VDMX
Controls/Network
Lutron®Casambi
Power/Voltage
RemoteUNV 120-277V120V
Integral Emergency
Lumen Maintenance
50000 h
Certificates
ETLBAA
Environment
Damp
Mounting Type
Surface
Housing
Housing Depth

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
