Whitegoods. WG-MEC. Mini Edgeless Cove Soft Shapes.

RESOURCES

DESCRIPTION

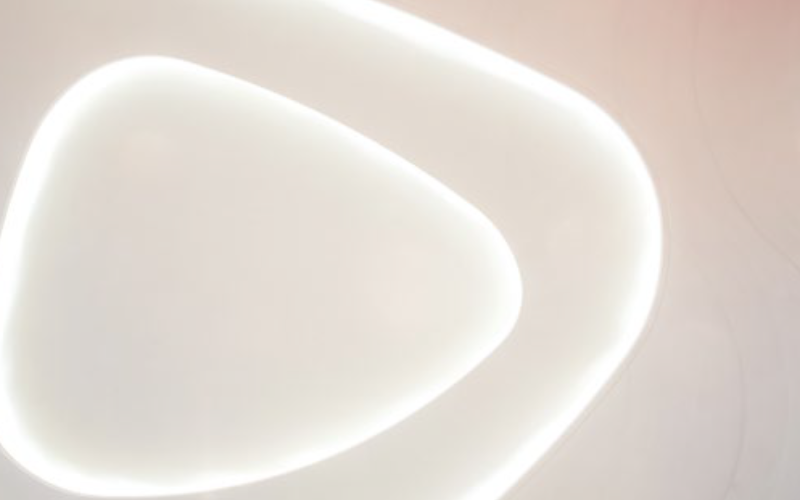

The original continuous linear knife edge cove system featuring plaster-in precision knife edge for clean, minimal effect. Visual curve created by small, segmented sections.

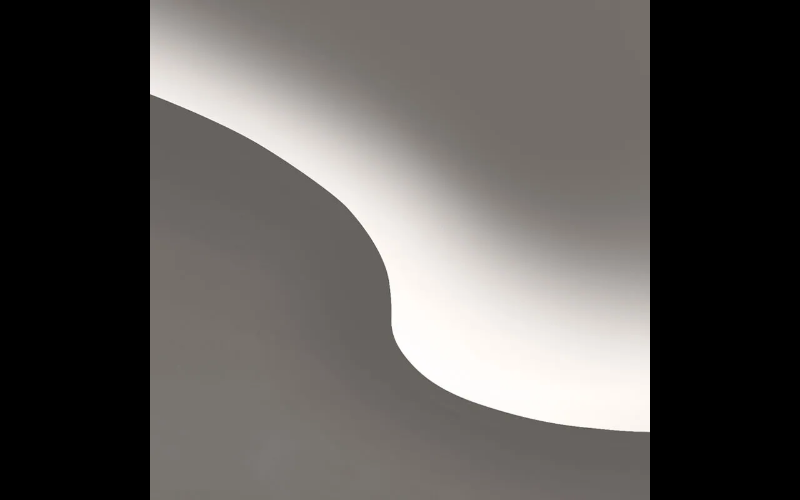

Continuous plaster-in knife edge cove system that delivers an even wash of directed light to the ceiling above, and redirected light to softly illuminate the back of the cove.
Light source positioned for optimum vertical spread of illumination.
Extruded aluminum housing, easily installed internal LED tray assembly. Remote driver. Field replaceable LED boards.
Efficacy up to 169 lumens per watt (delivered) @ 3000K, see photometry page for details.
90+ CRI, 3 Step MacAdam (Static White).
L70 (TM21 Projected 85ºC) Static White / Tunable White 50,000 hours.
ETL and ETL-C for dry and damp locations.
Satin clear diffuser for high efficiency and soft edge beam without striations.
Lengths and angles factory cut to exact field dimensions. Standard and custom corners.
Powdercoat painted.

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 6"
L: Run length (Ft)
H: 2"
Light Source
LED
CCT/Color
2700K3000K3500K4000KTunable White
CRI
90
Watt^(Approx)
1.5 W/Ft3 W/Ft6 W/Ft10 W/Ft15 W/Ft
Lumens^(Approx)
265 Lm/Ft520 Lm/Ft978 Lm/Ft1505 Lm/Ft2241 Lm/Ft
Optics
DirectGeneral Diffused
Adjustable

Dimming
Dim to 1%Dim to <1%DALILutron Hi-lume EcoSystem (LDE1)eldoLED SOLO 0-10V
Controls/Network
Lutron®Casambi
Power/Voltage
RemoteUNV 120-277V
Integral Emergency
Lumen Maintenance
50000 h
Certificates
ETLBAA
Environment
Damp
Mounting Type
Surface
Housing
Housing Depth

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

WG-MEC-C

Lead time Cost —
CONFIGURATOR

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

The original continuous linear knife edge cove system featuring plaster-in precision knife edge for clean, minimal effect. Visual curve created by small, segmented sections.
Continuous plaster-in knife edge cove system that delivers an even wash of directed light to the ceiling above, and redirected light to softly illuminate the back of the cove.
Light source positioned for optimum vertical spread of illumination.
Extruded aluminum housing, easily installed internal LED tray assembly. Remote driver. Field replaceable LED boards.
Efficacy up to 169 lumens per watt (delivered) @ 3000K, see photometry page for details.
90+ CRI, 3 Step MacAdam (Static White).
L70 (TM21 Projected 85ºC) Static White / Tunable White 50,000 hours.
ETL and ETL-C for dry and damp locations.
Satin clear diffuser for high efficiency and soft edge beam without striations.
Lengths and angles factory cut to exact field dimensions. Standard and custom corners.
Powdercoat painted.
