Whitegoods (Inter-Lux)
WG-100LDL. 100 Linear Recessed Flush Lens.
 Configure
 Add to project

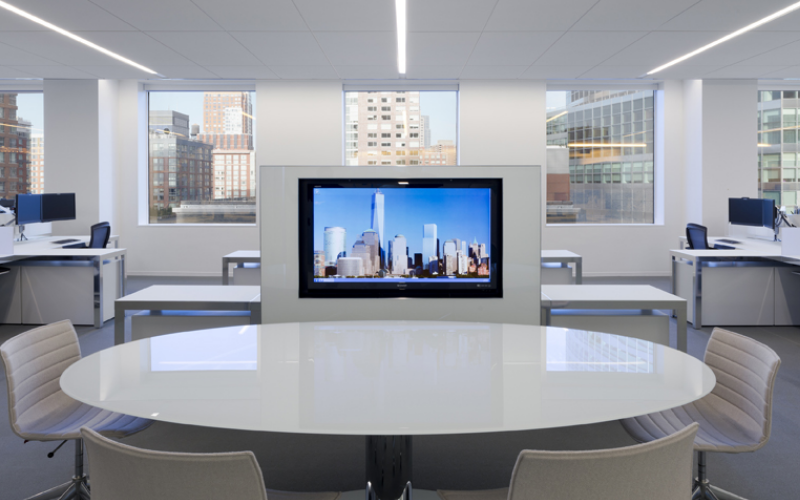

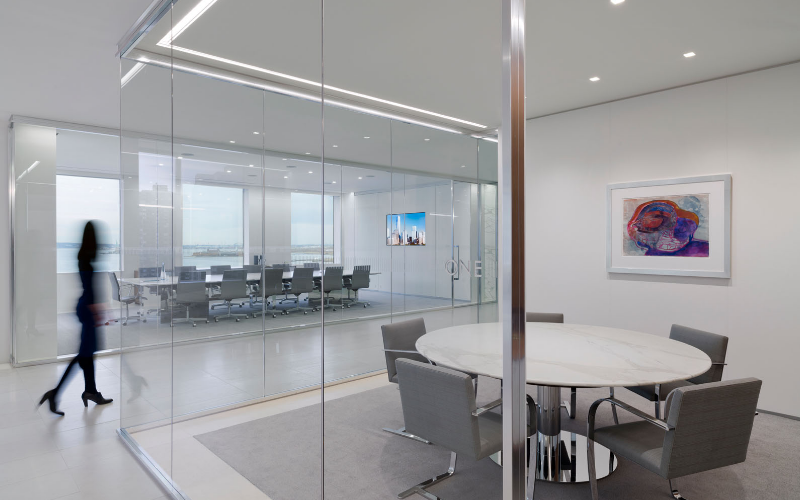

Whitegoods. WG-P100LDL. 100 Linear Plaster-in LED.
Whitegoods. WG-P100LDL. 100 Linear Plaster-in LED.
Whitegoods. WG-P100LDL. 100 Linear Plaster-in LED.
Whitegoods. WG-P100LDL. 100 Linear Plaster-in LED.
RESOURCES
DESCRIPTION
A continuous flush lens recessed linear luminaire with absolute minimal visual impact

  • 4” aperture, integrated solution that is compatible with all ceiling types
  • Standard and tailored run lengths, including corners, wall-to-wall and wall-to-ceiling configurations
  • Flush lens for wide angle, even illumination
  • Multiple control and connectivity options
  • Consistent LED technology used throughout the Whitegoods product range
  • Flexible design allows for installation from below with separate housing and gear tray for ease of installation and maintenance
  • Flicker-free full range dimming with standard driver (Eldoled)
  • Manufactured in the USA.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.8"5"
    L: Run length (Ft)
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000KTunable WhiteRGBW
  • CRI
    90
  • Watt(Approx)
    3 W/Ft6 W/Ft10 W/Ft7.6 W/Ft15 W/Ft
  • Lumens(Approx)
    274 Lm/Ft384 Lm/Ft722 Lm/Ft1111 Lm/Ft1654 Lm/Ft
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%Lutron EcoSystemLutron T-Series (PSQ0)eldoLED SOLO DALIeldoLED SOLO 0-10VeldoLED SOLO DMX
  • Controls/Network
    EthernetCasambi
  • Power/Voltage
    IntegralPoEUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    72000 h50000 h
  • Certificates
    ETL
  • Environment
  • Mounting Type
    Ceiling RecessedWall RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    New Construction
  • Housing Depth
    4.5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
