Whitegoods (Inter-Lux)
WG-100LDL. 100 Linear Surface Flush Lens.
Configure
Add to project
RESOURCES
DESCRIPTION

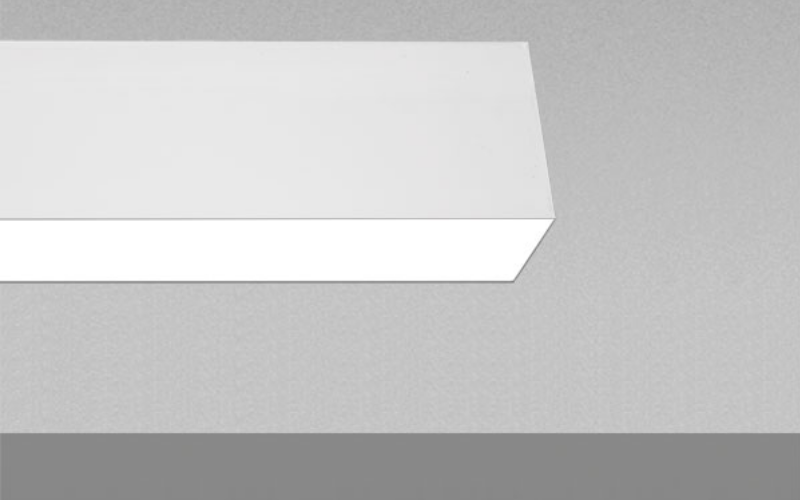

A continuous flush lens surface mounted linear luminaire with ultra clean design for absolute minimal appearance
- 4” aperture, integrated solution that is compatible with all ceiling types
- Standard and tailored run lengths, including corners, wall-to-wall and wall-to-ceiling configurations
- Flush lens for wide angle, even illumination
- Multiple control and connectivity options
- Consistent LED technology used throughout the Whitegoods product range
- Flexible design allows for installation from below with separate housing and gear tray for ease of installation and maintenance
- Flicker-free full range dimming with standard driver (Eldoled)
- Manufactured in the USA
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.8"L: Run length (Ft)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3 W/Ft6 W/Ft10 W/Ft7.6 W/Ft15 W/Ft
- Lumens(Approx)274 Lm/Ft384 Lm/Ft722 Lm/Ft11111 Lm/Ft1654 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Lutron EcoSystemLutron T-Series (PSQ0)eldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO DMX
- Controls/NetworkEthernetCasambi
- Power/VoltageIntegralRemotePoEUNV 120-277V
- Integral Emergency
- Lumen Maintenance72000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWG-SM100LDL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
