ERA4. EDGERazor 4” Knife Edge Linear Direct+Indirect.
Configure
Add to project
RESOURCES
DESCRIPTION

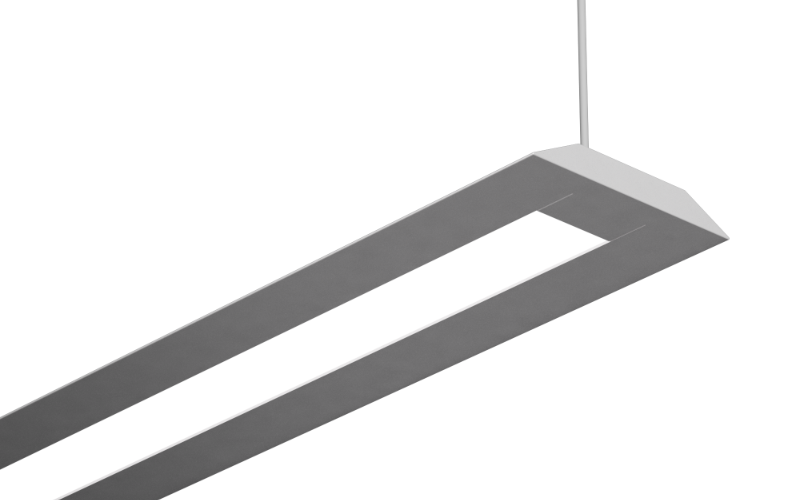

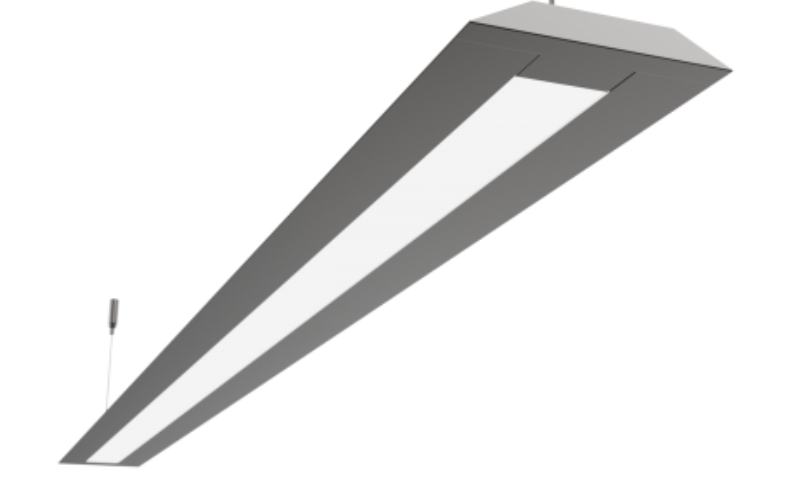

The EDGERazor Pendant is an innovative ultra-slim knife-edge LED luminaire only 5/8″ tall. EDGERazor Pendant is specification-grade with high lumen per foot, high CRI, and circadian options. Razor incorporates an engineered LED light engine with fully customizable choices for lumen output, CCT, and CRI.
Trapezoidal profile: 4.5” x 0.625”
Trapezoidal profile: 4.5” x 0.625”
- Fusion Optix® inside with SmartBeam® technology
- Declare listed and Red List Free materials
- 80/90/95+ CRI, 2200K-4000K CCT
- Static white, tunable white and dim-to-warm
- Available with BIOS and Sunlight LEDs
- 0-10V, DALI and DMX Dimming down to 0.1%
- Lutron and eldoLED drivers available
- UL listed, CSA 22.2 compliant
- RoHS compliance and lead free
- 5 Year, 50,000 hour standard warranty
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 2'4'6'8'10'Run length (inch)H: 0.5”
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)6.1 W/Ft6.3 W/Ftcustom
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectDirect/IndirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)eldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®Casambi
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHSDeclareBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeERA4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
